Installing the ABS control module

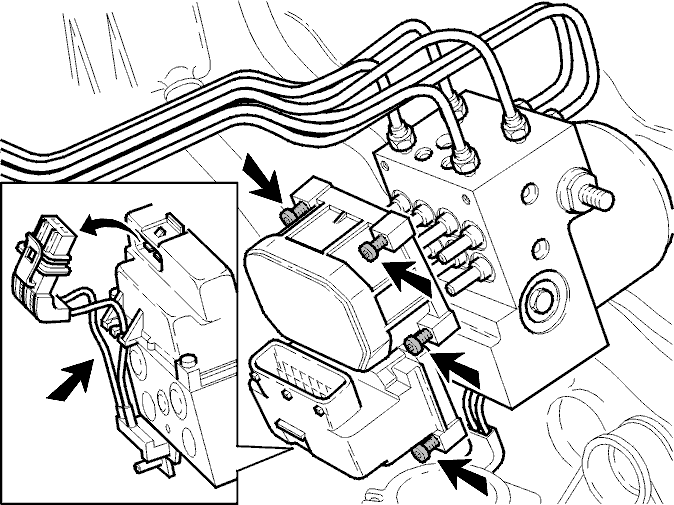

Fig 1: Removing/Installing ABS Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the transport protection on the new control module
Center the control module on the ABS hydraulic modulator valves before the valves are pushed into place
Carefully position the control module
Install the six Torx screws in the following two stages:
Tighten the screws. Tighten to 3 Nm .

Angle-tighten the screws 90°

NOTE: The torque must not exceed 8 Nm .
Connect the pump motor connector.
