Removing front wheel sensor

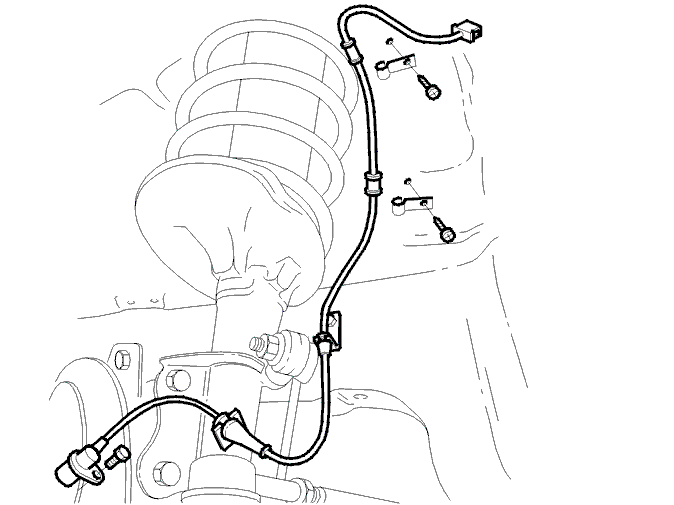

Fig 1: Removing Front Wheel Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Carefully clean the sensor and the connector before they are removed.

Remove the mounting bolt and pull out the sensor.

Remove the two brackets from the inside of the wing.

Pull the sensor cable out of the supports.

Partially remove the plastic inner wing.

Disconnect the connector.
