Installing The Throttle Body (TB)

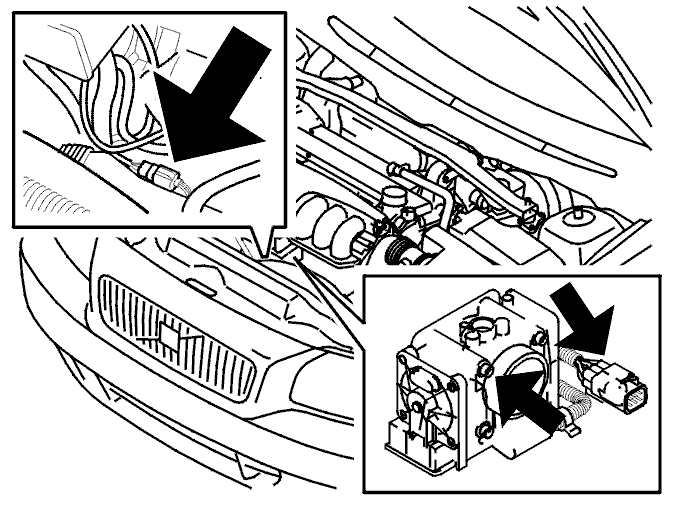

Fig 1: Identifying Throttle Body, Connector And Mounting Screws
GLL102993Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the mating surfaces thoroughly.

Install the throttle body (TB). Use a new gasket  . Tighten to 10 Nm  .

Connect the throttle body (TB) connector.
