Stop Lamp Rear Windshield

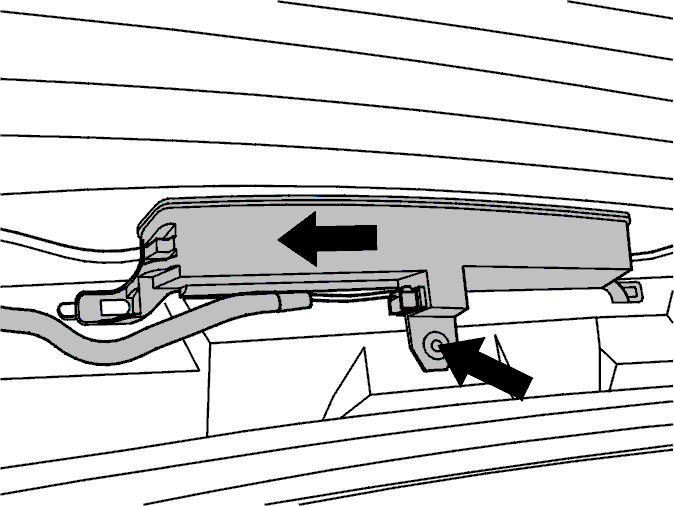

Fig 1: Removing Rear Windshield Stop Lamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

The stop lamp can only be replaced as a complete unit.

• Remove the panel for the tailgate. See Lower Tailgate Panel
• Remove the clip
• Disconnect the connector
• Slide the lamp to the left and remove it.
