Checking The Cable

HINT: Both treble loudspeaker/upper loudspeakers and the right and left-hand front base loudspeakers are connected on the following signal cables.

Check the cable terminals in the female and male sections of the connector. The cable terminals must not be damaged or pressed back.

Check the signal cable between audio module (AUD) terminal #B3 and treble speaker/upper loudspeaker terminal #2 in the right-hand door. Check for a short-circuit to ground. Check for a short-circuit to supply voltage.

Check the signal cable between audio module (AUD) terminal #B11 and treble speaker/upper loudspeaker terminal #1 in the right-hand door. Check for a short-circuit to ground. Check for a short-circuit to supply voltage.

Check the signal cable between audio module (AUD) terminal #B1 and treble speaker/upper loudspeaker terminal #2 in the left-hand door. Check for a short-circuit to ground. Check for a short-circuit to supply voltage.

Check the signal cable between audio module (AUD) terminal #B9 and treble speaker/upper loudspeaker terminal #1 in the left-hand door. Check for a short-circuit to ground. Check for a short-circuit to supply voltage.

Remedy as necessary.

Other information

• see CONNECTING THE BREAKOUT BOX (2007, 2008, 2009, 2010, 2011)
• see SIGNAL SPECIFICATION (2007, 2008, 2009, 2010, 2011)
• see AUDIO MODULE
• see LOUDSPEAKER, SIDE DOOR FRONT
• see CHECKING WIRING AND TERMINALS

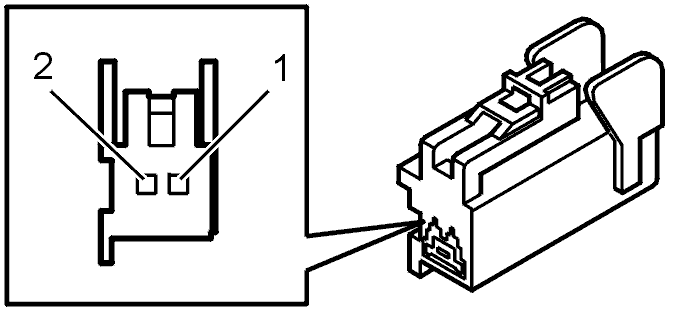

Fig 3: Identifying 2-Bit Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Refer to VERIFICATION
