Checking The Component And Wiring

Check the cable terminals in the female and male sections of the connector. The cable terminals must not be damaged or pressed back.

Check the signal cable between audio module (AUD) terminal #B8 and microphone input terminal #A2 (pin B). Check for a short-circuit to ground.

Check the signal cable between audio module (AUD) terminal #B16 and microphone input terminal #A1 (pin A). Check for a short-circuit to ground.

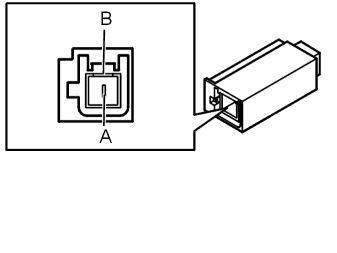

Check the resistance between terminal #A1 (pin A) and #A2 (pin B) in the microphone connector. The resistance should be between 100 Ω - 10 kΩ.

Remedy as necessary.

Other information

• see CONNECTING THE BREAKOUT BOX (2007, 2008, 2009, 2010, 2011)
• see SIGNAL SPECIFICATION (2007, 2008, 2009, 2010, 2011)
• see AUDIO MODULE
• see MICROPHONE TELEPHONE (2004, 2005, 2006, 2007, 2008, 2009)or  see MICROPHONE TELEPHONE (2010, 2011)
• see CHECKING WIRING AND TERMINALS

Fig 3: Identifying 1-Bit Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Brown Carphone Antenna Connector (F) Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Refer to VERIFICATION
