Removing The Global Positioning System Module (GPS)

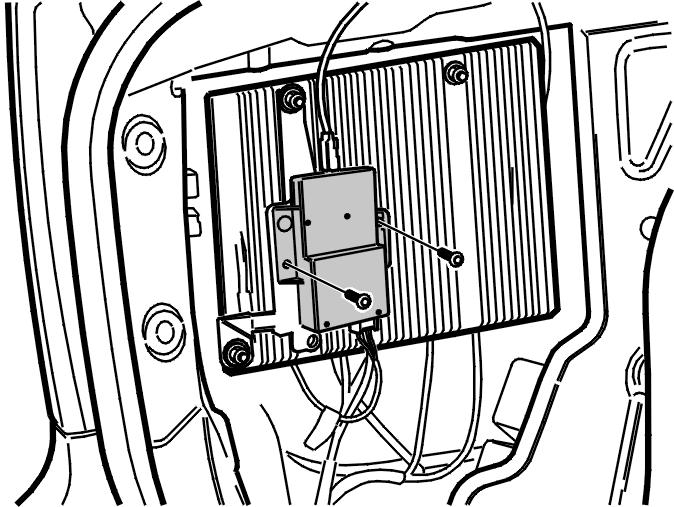

Fig 1: Locating Global Positioning System Module (GPS) Screws

Courtesy of VOLVO CARS CORPORATION

Move the left-hand side panel at the rear edge of the cargo compartment to one side. See: SIDE PANEL LOADSPACE .

Remove:

• the 3 connectors
• the 2 screws
• the control module.
