Control Module Relay Box, Passenger Compartment: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2011 Volvo V50, 2010 Volvo V50, 2009 Volvo V50, 2008 Volvo V50, and 2007 Volvo V50. However, it is still accessible from the selected car via links, so may be relevant.

Perform battery disconnecting and connecting, see BATTERY DISCONNECTING AND CONNECTING

CAUTION:

The control module must be removed, reinstalled and downloaded with software before the control module is replaced.

NOTE:

This module contains customer parameters.

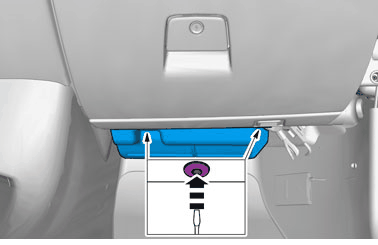

Fig 1: Identifying Control Module Relay Box & Clip
GLL171324Courtesy of VOLVO CARS CORPORATION

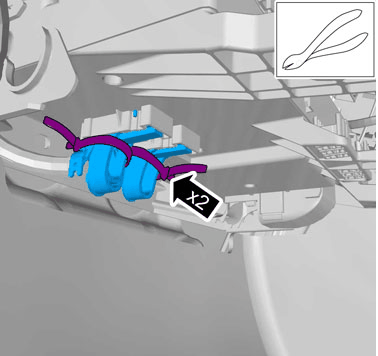

Fig 2: Identifying Zip Ties
GLL171331Courtesy of VOLVO CARS CORPORATION

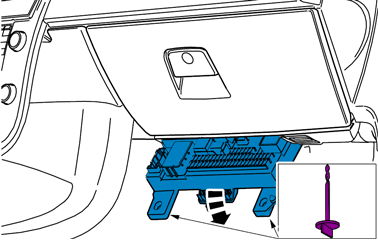

Fig 3: Identifying Control Module Relay Box Tilted Down
GLL171332Courtesy of VOLVO CARS CORPORATION

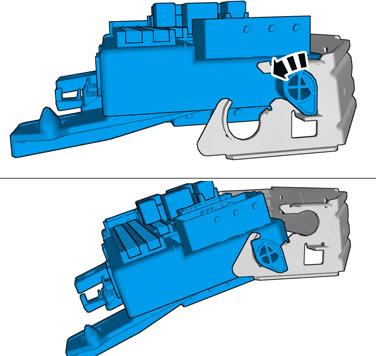

Fig 4: Identifying Control Module Relay Box Pulled Forward And Down
GLL171325Courtesy of VOLVO CARS CORPORATION

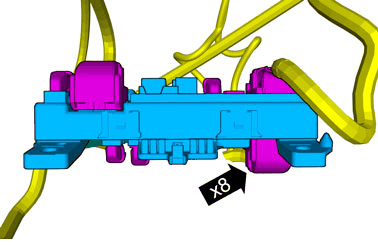

Fig 5: Identifying Control Module Relays And Cables
GLL171326Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.

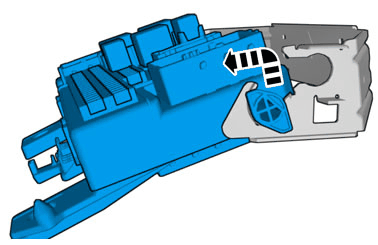

Fig 6: Identifying Removal Of Control Module Relay Box
GLL171348Courtesy of VOLVO CARS CORPORATION
