Installing The Control System

NOTE: Ensure the lever for the gear selector is set to neutral.

Align the control system on the lever for the gear selector.

Install:

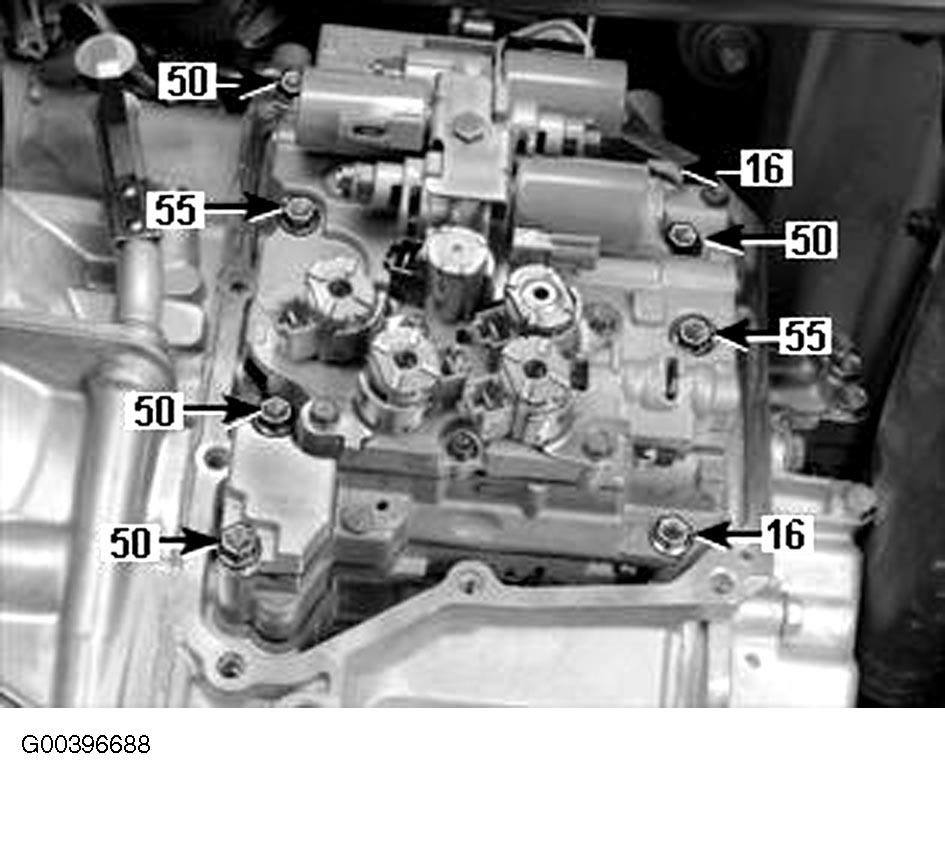

the screws for the control system. See Figure.
a new gasket for the cover on the control system.
NOTE: The various screw length are indicated in mm.

Lightly tighten the M6 screws alternately. Then tighten alternately.
