Plastic, Material Information

Bodywork components

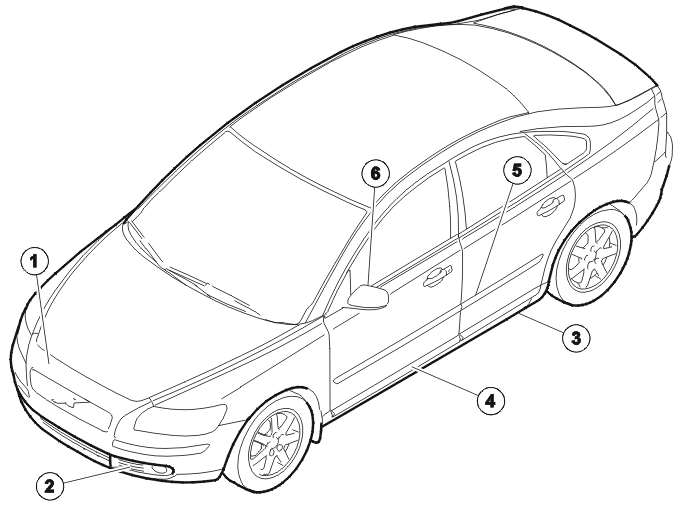

Fig 1: Identifying Bodywork And Exterior Components (1 Of 2)

GLL142377

Courtesy of VOLVO CARS OF NORTH AMERICA.

Index	Component	Material
1	Bumper cover	PP + EPDM
2	Grille in bumper cover	PP + EPDM
3	Door sill	PP + EPDM T8
4	Lower door trim	PP + EPDM T8
5	Trim molding	PP + EPDM M26
6	Door mirror cover (painted)	ABS
6	Door mirror foot (black)	ASA

Bodywork components (cont.)

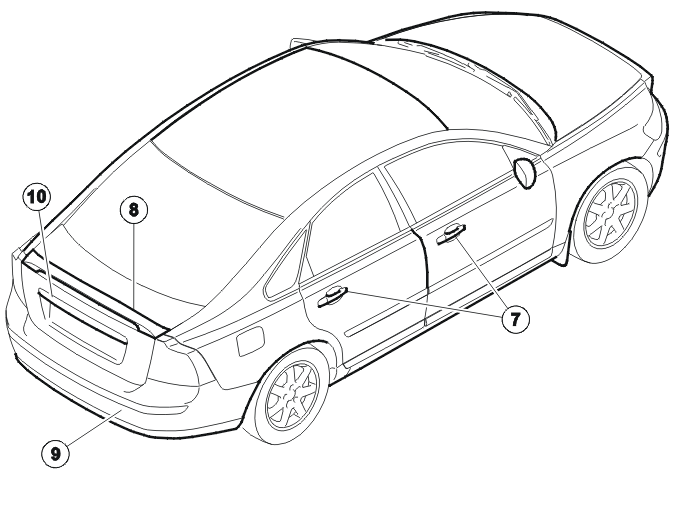

Fig 2: Identifying Bodywork And Exterior Components (2 Of 2)

GLL142378

Courtesy of VOLVO CARS OF NORTH AMERICA.

Index	Component	Material
7	Outer door handle	PA66 GF30
8	Spoiler (B5254T3)	PUR
8	Spoiler (other engines)	ABS
9	Bumper cover	PP + EPDM
10	Handle tailgate	PC + ABS
