Cavity Protection (Ml)

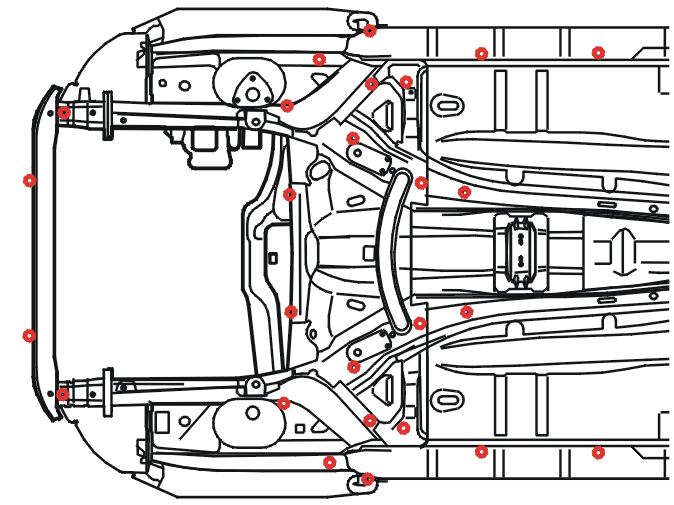

Fig 1: Rustproofing Material Application Locations - Front

Courtesy of VOLVO CARS OF NORTH AMERICA.

Volvo product P/N 116 1682 is used for cavity protection.

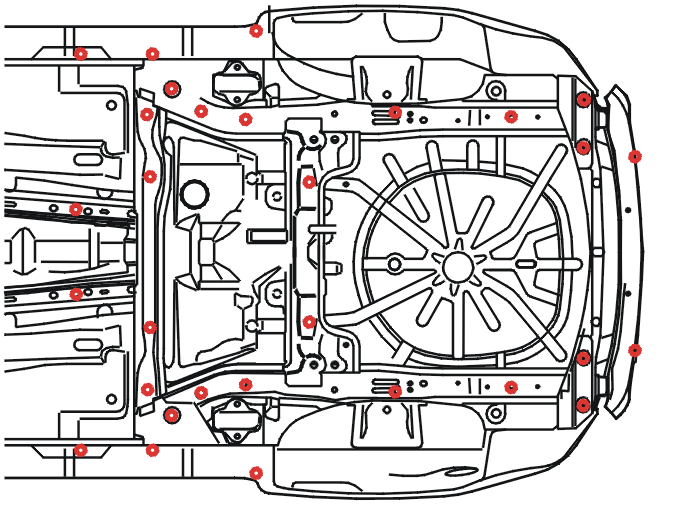

Fig 2: Rustproofing Material Application Locations - Rear

Courtesy of VOLVO CARS OF NORTH AMERICA.

Courtesy of VOLVO CARS OF NORTH AMERICA.

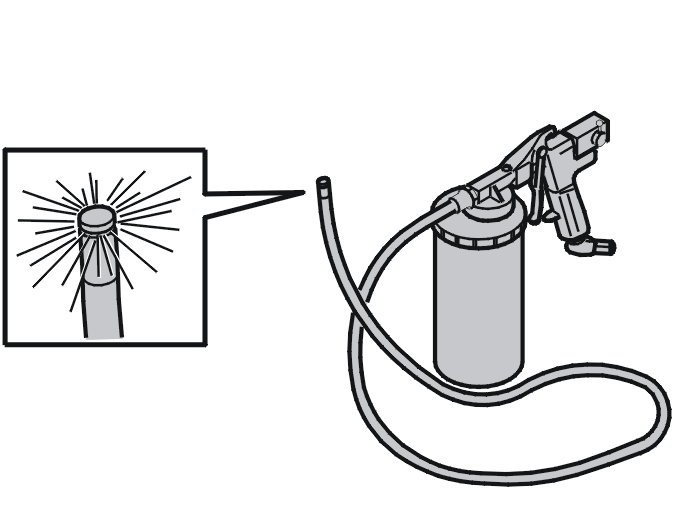

Use a grease gun and a hose nozzle with a 360 degree spray range. See the illustration above.

Insert the hose in the cavity. Spray while slowly removing the hose.

HINT: Measure the width X of the hole. Hold the nozzle X mm from a piece of cardboard to check that the spray is operating at the correct speed.

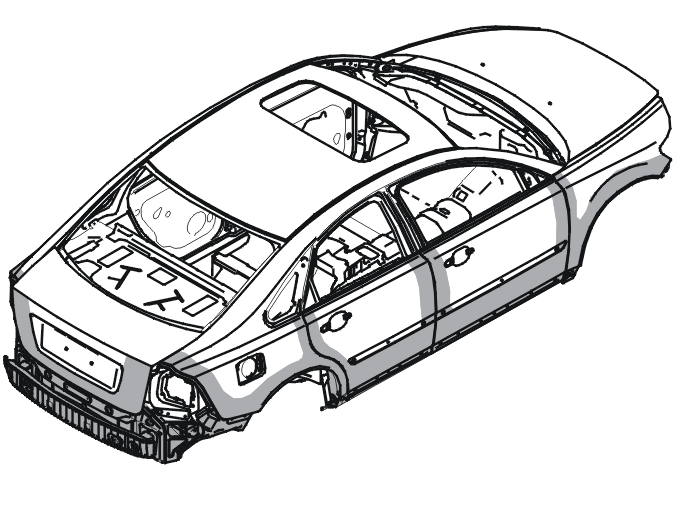

Fig 3: Cavity Protection Application Areas

Courtesy of VOLVO CARS OF NORTH AMERICA.

When carrying out repairs to the bodywork, the areas marked in gray in the illustrations must be rustproofed with a large amount of cavity protection (ML).

This applies for example to welded joins and areas that have been treated in some other way.
