Diagnostic Trouble Code (DTC) Information DDM/PDM-0019

Condition

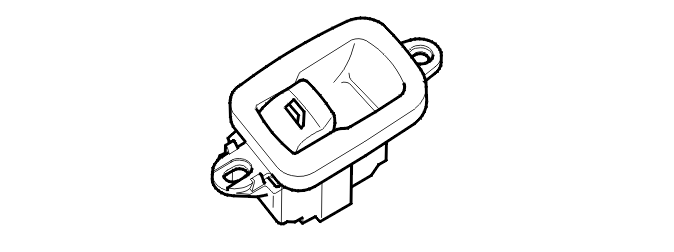

Fig 1: Identifying Window Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

The diagnostic trouble code (DTC) is stored if the control module registers that the button for operating the power window mechanism in the rear door has been pressed for more than 60 seconds.

Substitute Value

• None.

Possible Source

• The button has jammed in the pressed in position
• Damaged button for the power window mechanism.

Fault symptom[s]

• The power window mechanism in the rear door does not operate.
