Checking The Component And Wiring

Check the cable terminals. Check for contact resistance, loose connections and oxidation.

Check the cable terminals in the female and male sections of the connector. The cable terminals must not be damaged or pressed back.

Check the signal cable between the Audio module (AUD) #B1 and the loudspeaker #2 in the left door. Check for an open circuit.

Check the signal cable between the Audio module (AUD) #B9 and the loudspeaker #1 in the left-hand door. Check for an open circuit.

HINT: Check the connector between Audio module (AUD) and the loudspeaker in the left door for contact resistance, loose connection and oxidation.

Check the loudspeaker connector terminals #1 and 2 in the left-hand door. Check for an open-circuit.

Remedy as necessary.

Other information

• see CONNECTING THE BREAKOUT BOX (2007, 2008, 2009, 2010, 2011)
• see SIGNAL SPECIFICATION (2007, 2008, 2009, 2010, 2011)
• see AUDIO MODULE
• see LOUDSPEAKER, SIDE DOOR FRONT
• see CHECKING WIRING AND TERMINALS

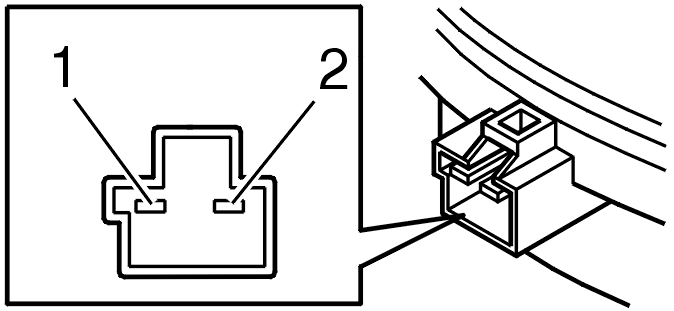

Fig 3: Identifying 2-Bit Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying 2-Bit Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Refer to VERIFICATION
