Trailer Module (TRM): Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2011 Volvo V50, 2010 Volvo V50, 2009 Volvo V50, 2008 Volvo V50, and 2007 Volvo V50. However, it is still accessible from the selected car via links, so may be relevant.

Removing The Trailer Module (TRM)

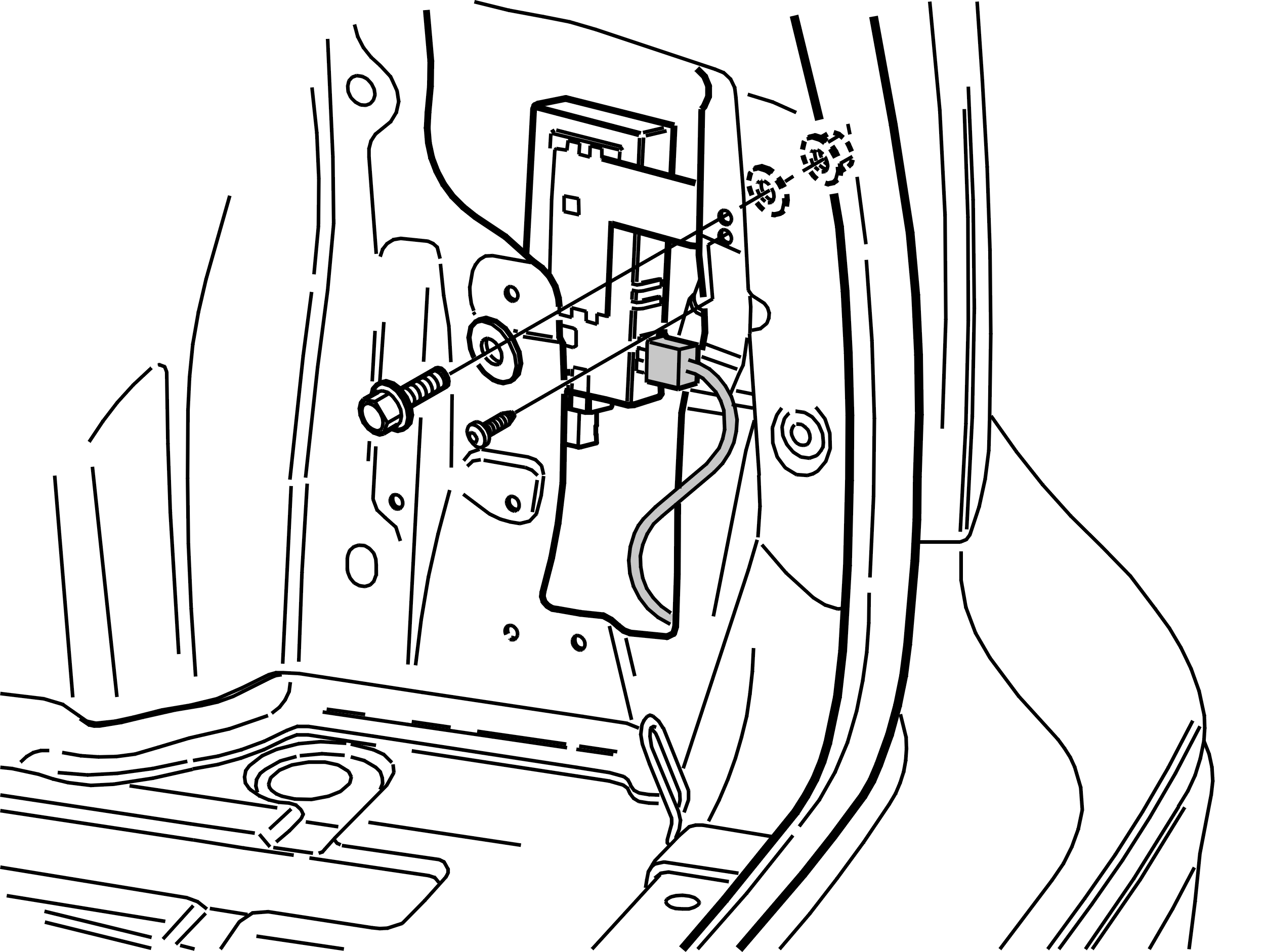

Fig 1: Identifying Control Module Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the screw
the screw together with the nut
the connector
the control module.
