Secondary lock

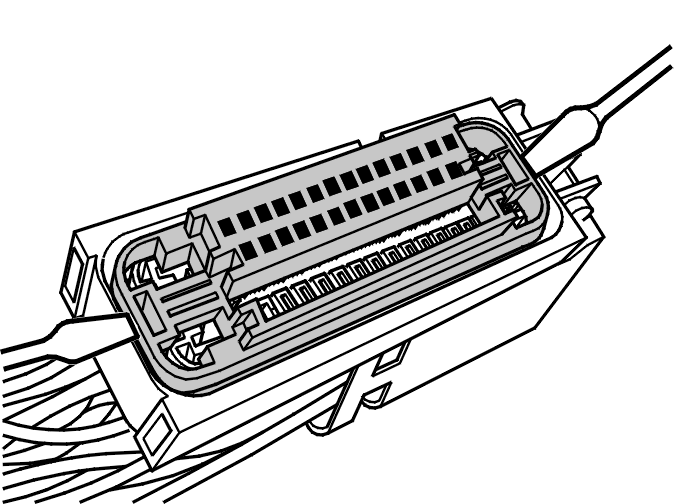

Fig 1: Identifying Secondary Lock Released Using Electrician's Screwdriver
GLL101325Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the secondary lock. Use electrician's screwdriver as shown in the illustration.

CAUTION:

Disconnect and work with only one cable at a time to minimize the risk of mixing them up.
