Front Control Arm Bushing Replacement (61-07)

Publication date: 2005-06-28
Reference number: 61-07

FRONT CONTROL ARM BUSHING REPLACEMENT

FRONT CONTROL ARM BUSHING REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 61-07, Date of Issue:  June 28, 2005
VOLVO: 2003 - XC90
REFERENCE: VIDA
GROUP: 61
NO.: 07

DESCRIPTION

This Service Bulletin describes replacement of bushings in the front control arm.

SPECIAL TOOLS

Description P/N Notes
Drift 9997051 See Special Tool Bulletin 96-B
Socket 9997209 See Special Tool Bulletin 146
Socket 9997210 See Special Tool Bulletin 146
Drift 9997211 See Special Tool Bulletin 146

SERVICE

Replacing control arm bushing

  1. NOTE: As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

    Preparatory work
  2. Control arm removal

    For control arm removal, see: VIDA Removal, replacement and installation Wheel suspension, steering Front wheel suspension Front axle member, control arm Front control arm, replacing

    NOTE: The following method shows the positions of the bushings in relation to the control arm.

    In this method, work is carried out on the left control arm. Positioning on the right side is reversed.

    NOTE: It is extremely important to the properties and service life of the bushings that they be placed in the correct position.

    Removal:

  3. Remove the front bushing

    Place the control arm in a workshop press. Use drift 999 7211 and socket 999 7210; see illustration.

    Press out the bushing.

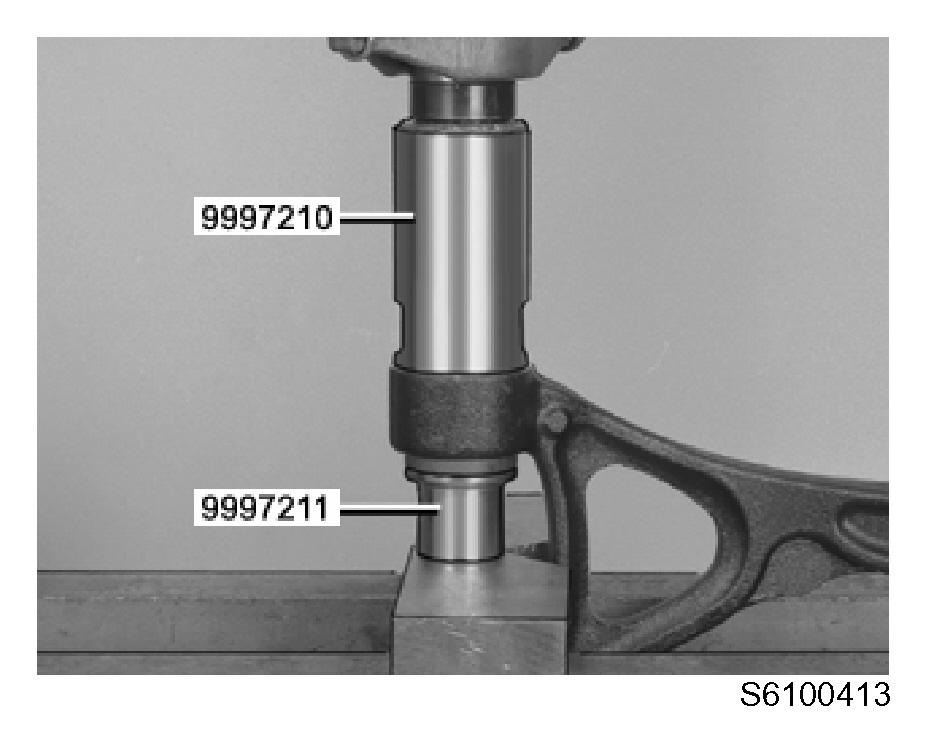

    Fig 1: Pressing Out Bushing
    G04600520Courtesy of VOLVO CARS OF NORTH AMERICA.

    Installation:

  4. Install the front bushing
    NOTE: Be very precise when positioning the bushing in the control arm.

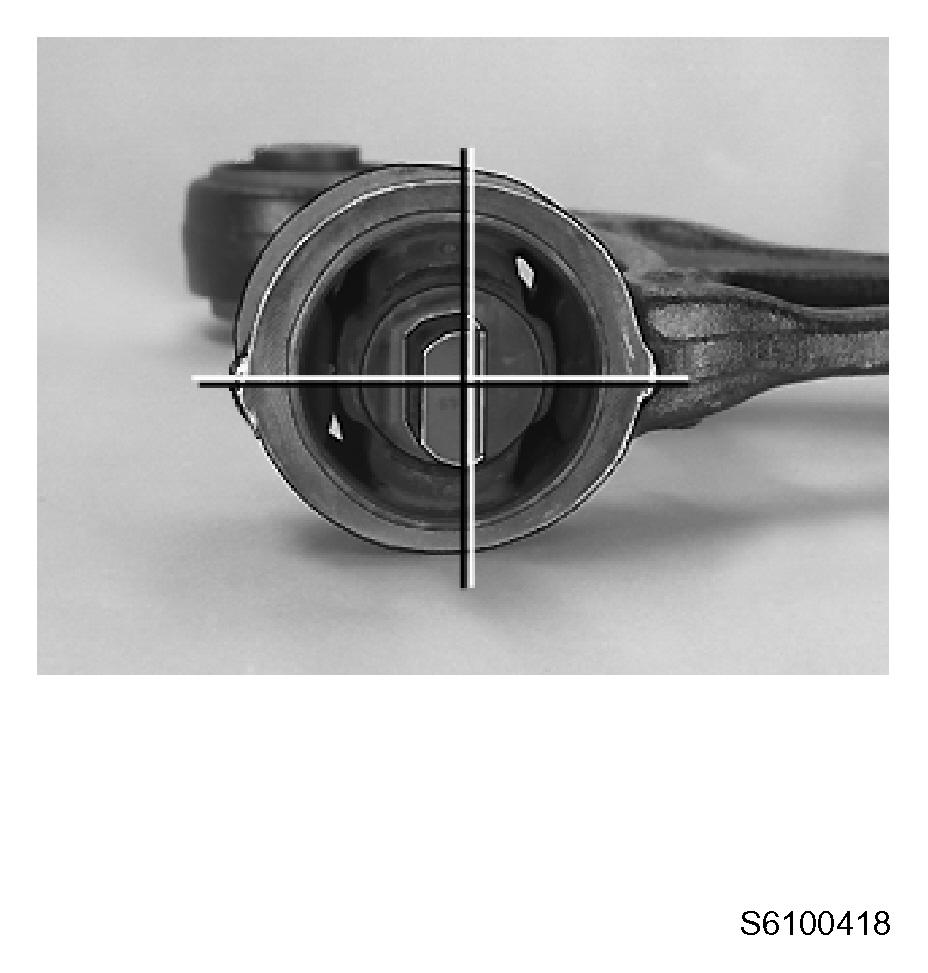

    Fig 2: Positioning Bushing
    G04600521Courtesy of VOLVO CARS OF NORTH AMERICA.
  5. Install the front bushing, continued

    Use drift 999 7211 and place the bushing in the drift. The side of the bushing pin that has the smaller of the flat surfaces is to be positioned against the screw hole. Loosely fit a bushing screw through the drift hole.

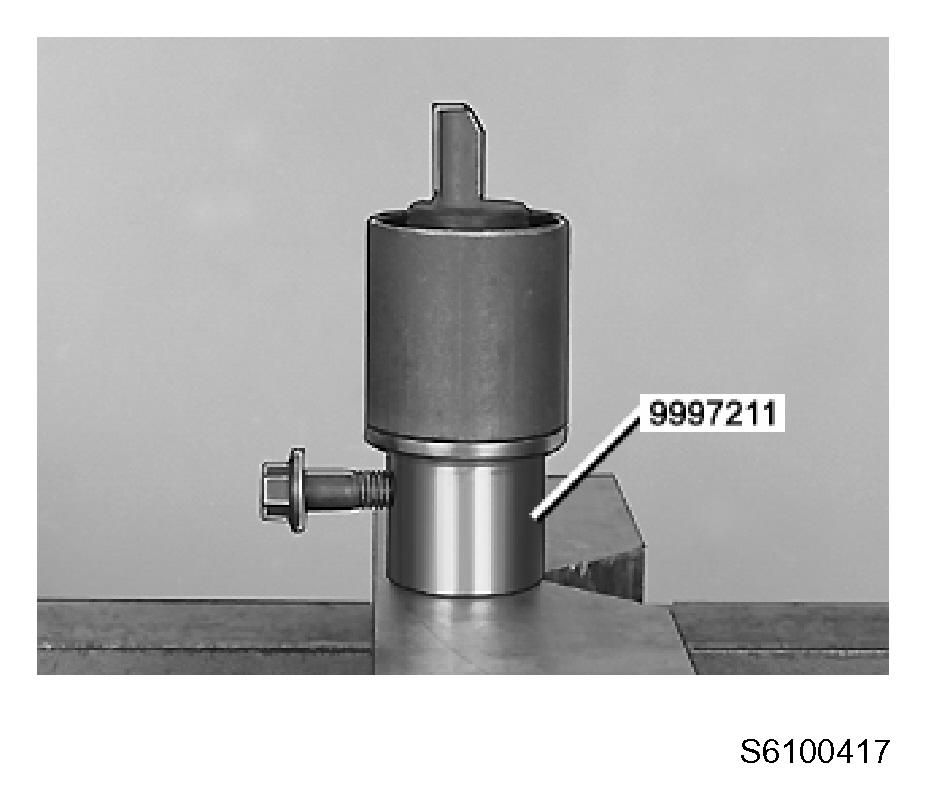

    Fig 3: Placing Bushing In Drift
    G04600522Courtesy of VOLVO CARS OF NORTH AMERICA.
  6. Install the front bushing, continued

    Align the drift so that the screw is opposite the cast joint of the control arm.

    Use socket 999 7210. With the hole centred, turn the socket in the same direction as the screw/cast joint.

    Carefully press in the bushing until the threaded hole in the bushing shaft can be seen through the socket hole.

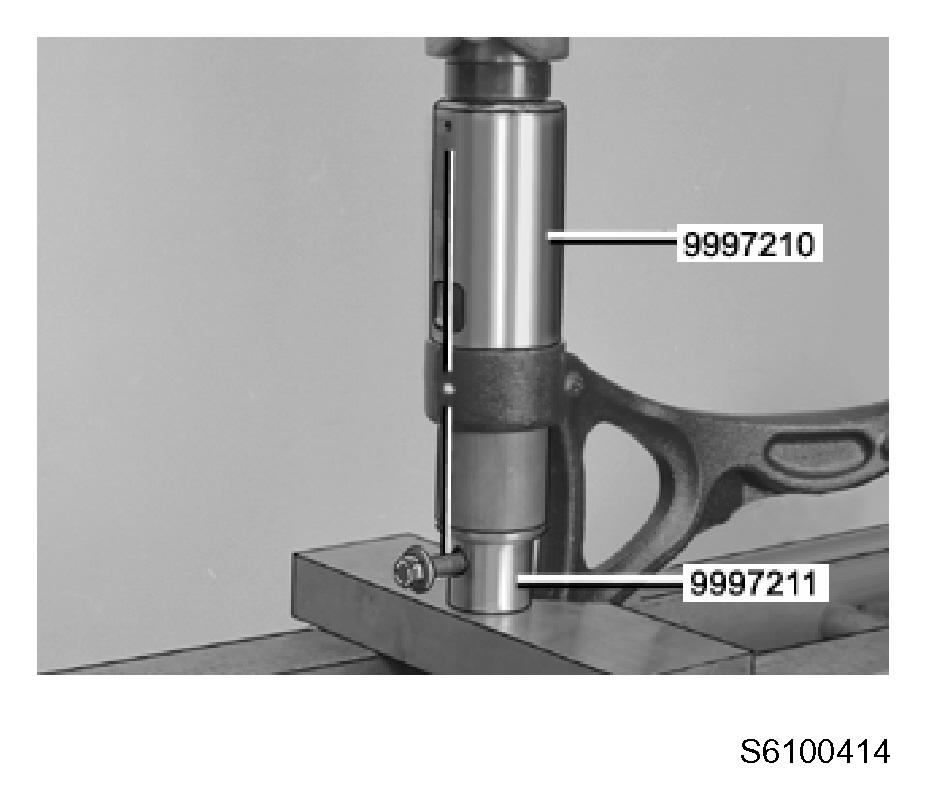

    Fig 4: Pressing In Bushing
    G04600523Courtesy of VOLVO CARS OF NORTH AMERICA.
  7. Install the front bushing, continued

    Transfer the screw and tighten it so that its unthreaded section covers the edge of the socket hole.

    Press in the bushing until the unthreaded section of the screw touches the upper edge of the hole. The bushing is now in the correct position.

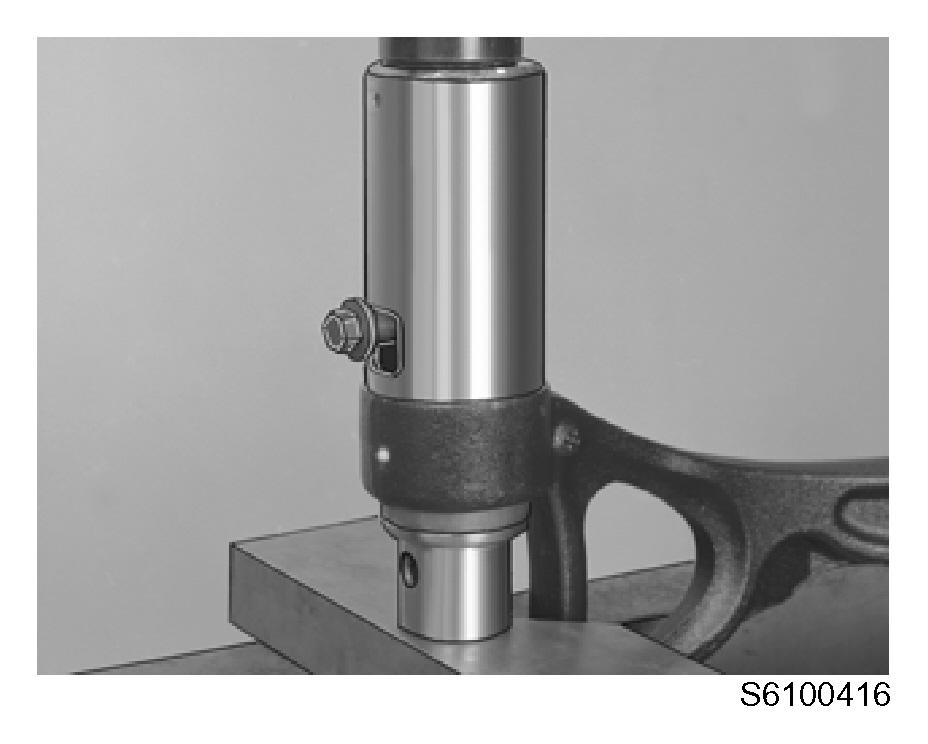

    Fig 5: Installing Front Bushing
    G04600524Courtesy of VOLVO CARS OF NORTH AMERICA.

    Removal:

  8. Remove the rear bushing

    Place the control arm in a workshop press. Use socket 999 7209 and drift 999 7051.

    Press out the bushing.

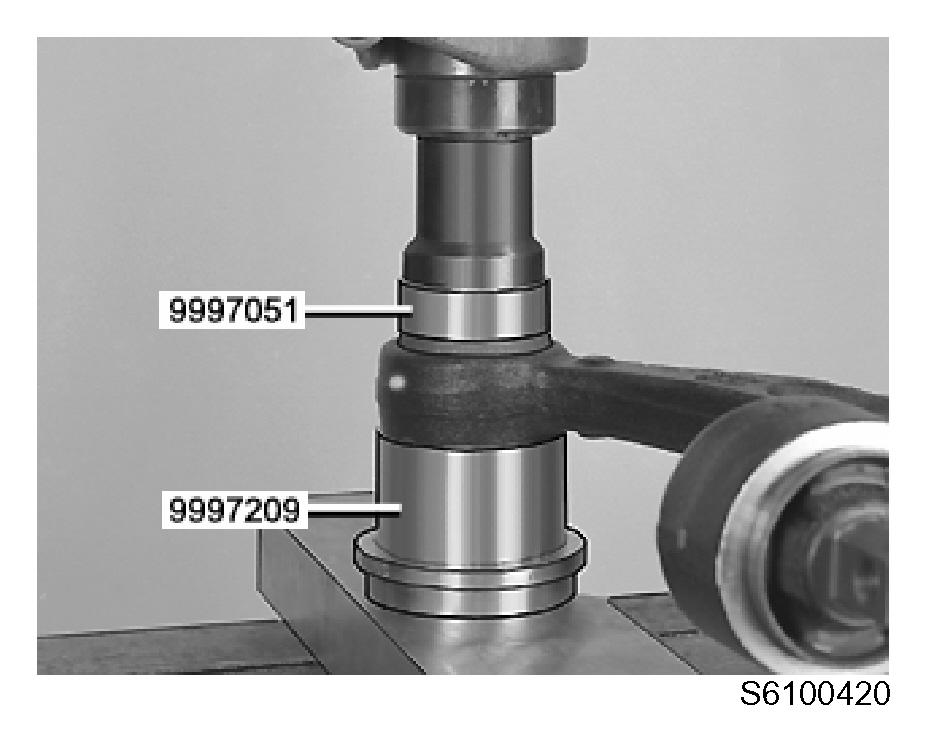

    Fig 6: Pressing Out Rear Bushing
    G04600525Courtesy of VOLVO CARS OF NORTH AMERICA.

    Installation:

  9. Install the rear bushing
    NOTE: Be very precise when positioning the bushing in the control arm.

    The two recesses in the inner sleeve of the bushing are to be positioned at a 75 degree angle in relation to the longitudinal line; see illustration.

    Mark the bushing and control arm with a marker.

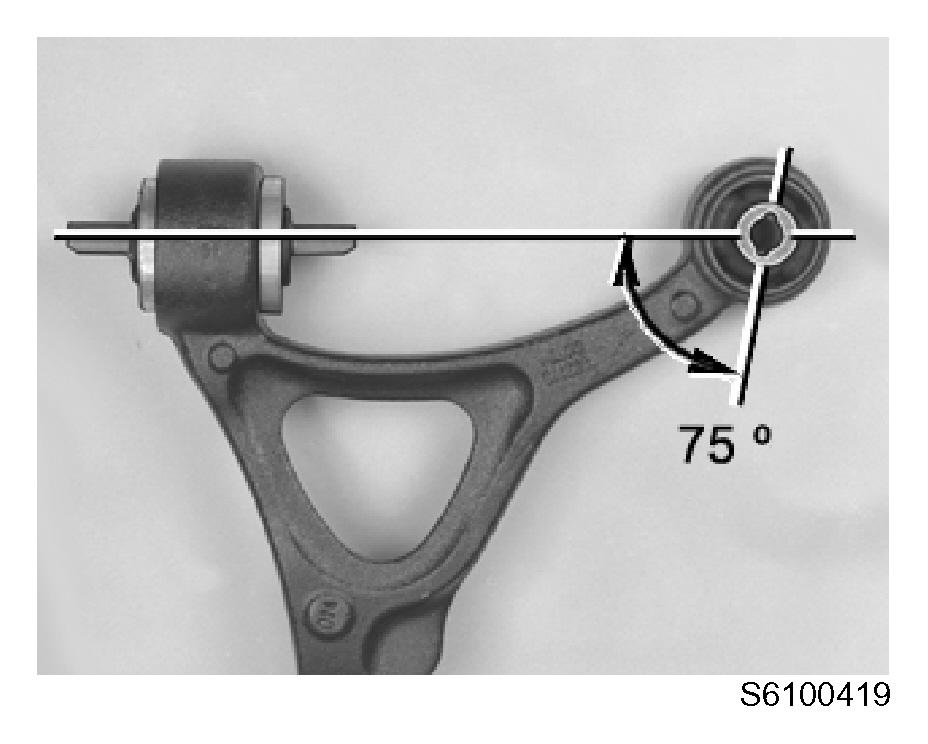

    Fig 7: Identifying Bushing Angle
    G04600526Courtesy of VOLVO CARS OF NORTH AMERICA.
  10. Install the rear bushing, continued

    Place the control arm in a workshop press. Use socket 999 7209 and drift 999 7051.

    Press in the bushing so that the distance between the plane on the bushing inner sleeve and the machined surface of the control arm is 40 mm.

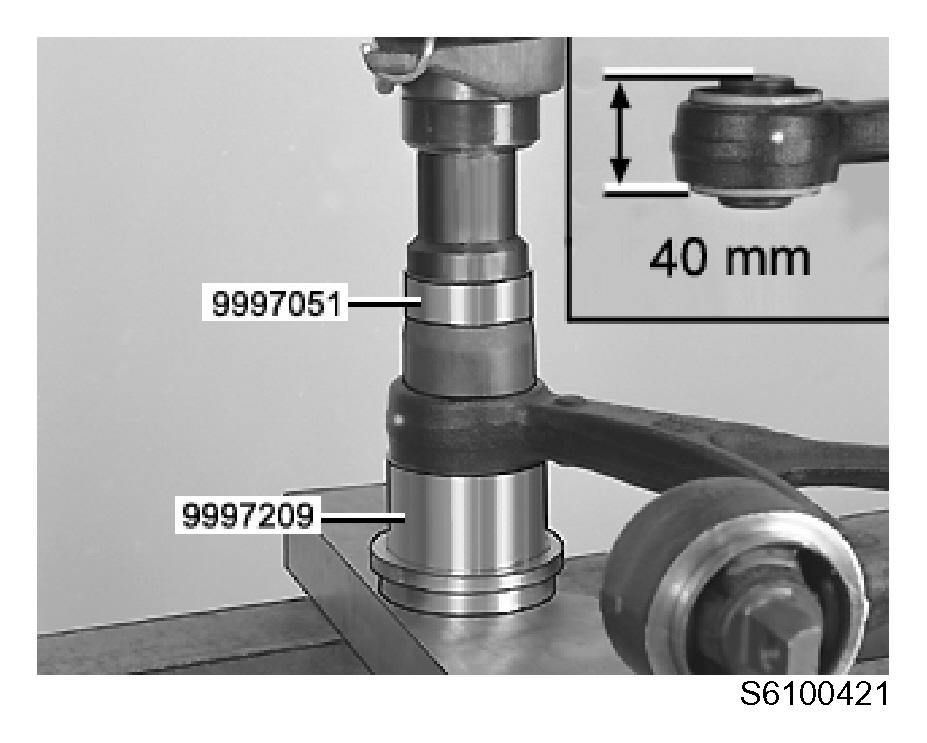

    Fig 8: Presssing In Rear Bushing
    G04600527Courtesy of VOLVO CARS OF NORTH AMERICA.

    Finishing work:

  11. Control arm installation

    For control arm installation, see: VIDA Removal, replacement and installation Wheel suspension, steering Front wheel suspension Front axle member, control arm Front control arm, replacing

WARRANTY CLAIM INFORMATION

WARRANTY CLAIM INFORMATION

LABOR OP LABOR DESCRIPTION LABOR TIME
61216 -2 Front control arm, 2 sides R&I / replace 1.5 hr
61247 -3 Front bushing, front control arm, replace 0.3 hr
61246 -3 Rear bushing, front control arm, replace 0.4 hr
Claims may be submitted under the New Car Warranty when there is a documented customer complaint using claim type: 01
