Installing The Sub-Frame

Position the sub-frame on a lifting table. See Fig 1. Carefully lift the sub-frame. Locate the control arms to the ball joints and the steering gear to its mountings.

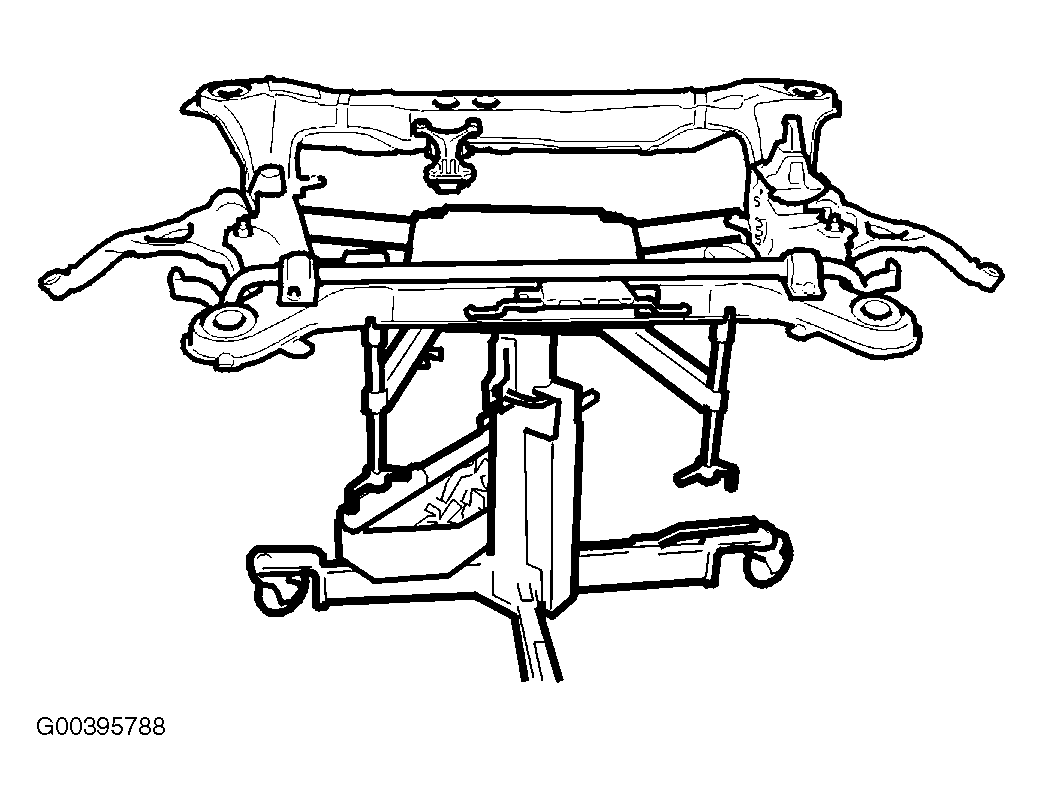

Fig 1: Positioning Sub-Frame On Lifting Table

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hint: Lubricate the rubber coated clamp for the servo pressure pipe on the sub-frame using a soap solution. Install the screw before raising the sub-frame completely. Do not tighten the screw more than 2 turns as the pipe must be able to slide to the correct position in the clamp while raising the sub frame.

NOTE: Ensure that the brake pipe at the exhaust mounting is not trapped when raising the sub frame.

Lift the sub-frame up completely. Install the four screws in the sub-frame together with the sub-frame brackets and engine block heater, if applicable. Use NEW screws. Lubricate the screws.

First tighten the screws on the left side of the sub-frame. Tighten to 105 Nm, then angle tighten to 120°. Then tighten the right-hand side to the same value. Finally tighten the screws for the brackets on both sides to 50 Nm.
