Installing The Control System Cover

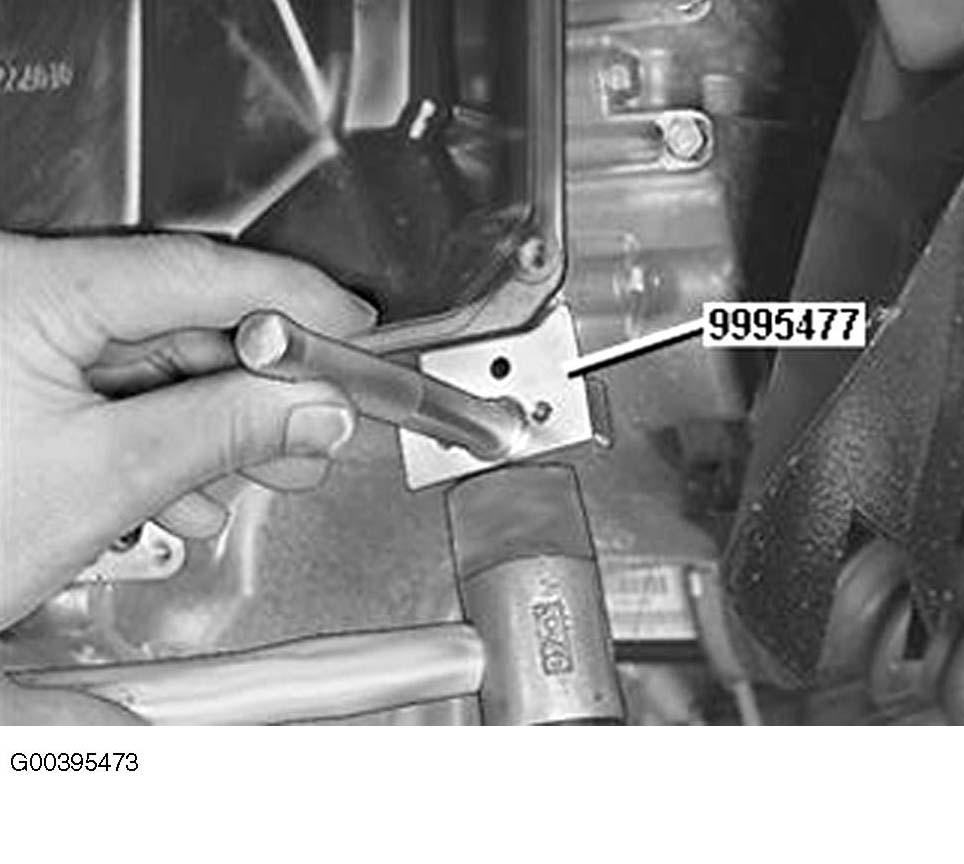

Reinstall the control system cover on the transmission. Tighten the screws alternately. Tighten to 12 Nm. Torx TX 40. See Figure.

Install:

• the oil pipe on the transmission with a new O-ring
• the return line to the control system cover
• the cable harness to the holder on the cover
• the ground lead for the transmission.
