Sunroof Control Module SRM, XC90 Connector End View (4/33)

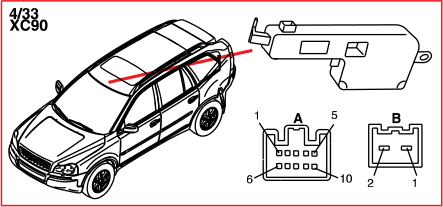

Fig 1: Sunroof Control Module SRM, XC90 Connector End View (4/33)

G10843437

Courtesy of VOLVO CARS CORPORATION
