Preparatory Work: Removal

Remove the Phone module (PHM). See: PHONE MODULE (PHM), REPLACING (2006-2010) .

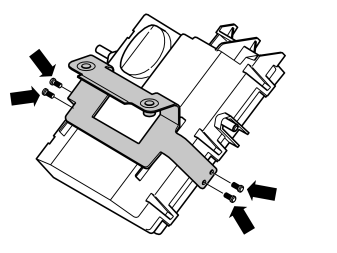

Fig 1: Identifying Phone Module, Bracket, And Screws

Courtesy of VOLVO CARS CORPORATION

Remove:

• the screws, 4 pieces.
• the bracket.

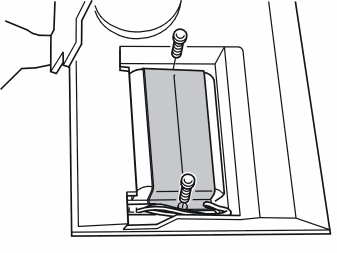

Fig 2: Identifying Screws For Phone Module Battery

Courtesy of VOLVO CARS CORPORATION

Remove:

• the cover
• the connector, 1 piece.
• the 2 screws
• the metal bracket
• the battery.
