Body Side, Inner, Replacing

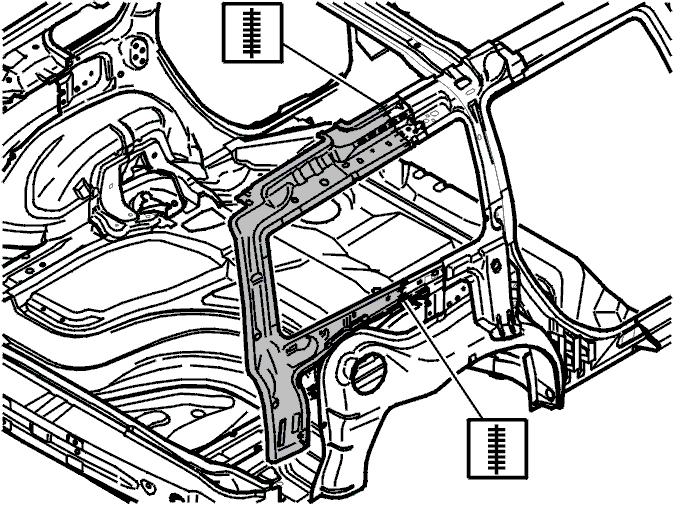

Fig 1: Inner Body Side Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use holes as a guide.

Cut through a hole.

Align the component.

Weld into place.

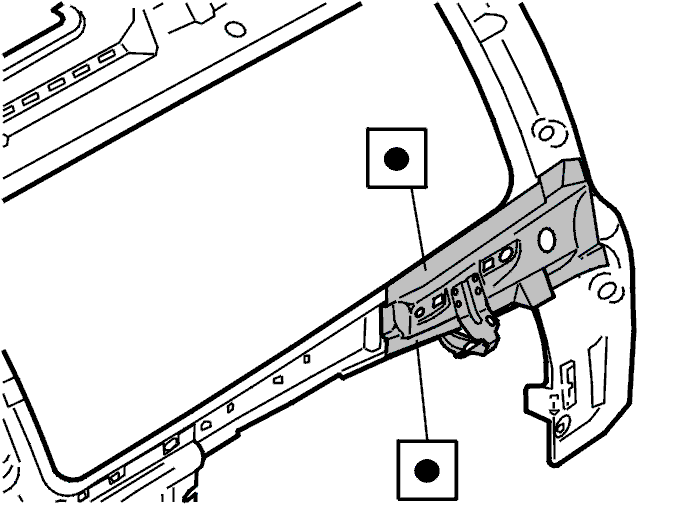

Fig 2: Central Electrical Unit Bracket Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Weld the bracket for the central electrical unit into place.
