Location Of Wheel Brake Components (2000-2004)

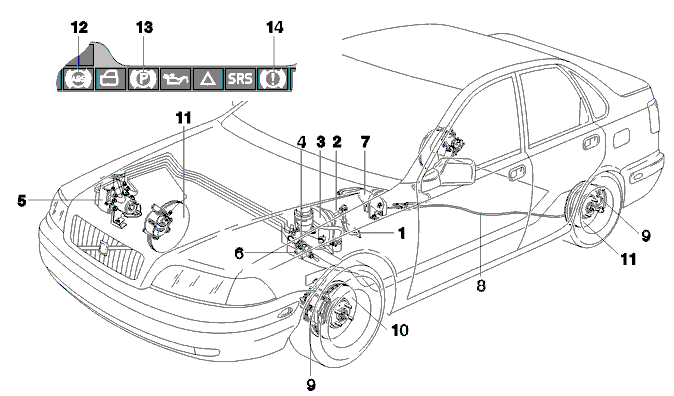

Fig 1: Location Of Components In Brake System

Courtesy of VOLVO CARS OF NORTH AMERICA.

1. Brake pedal
2. Brake light switch
3. Power brake booster
4. Tandem master cylinder
5. ABS module (electrical control unit together with hydraulic system)
6. Brake pressure limiter rear wheels (only model year -1997)
7. Parking brake
8. Parking brake cable
9. Brake caliper
10. Sensors
11. Pulse wheel
12. ABS warning light
13. Parking brake warning light
14. Brake fluid warning light
