Gearshift Cable

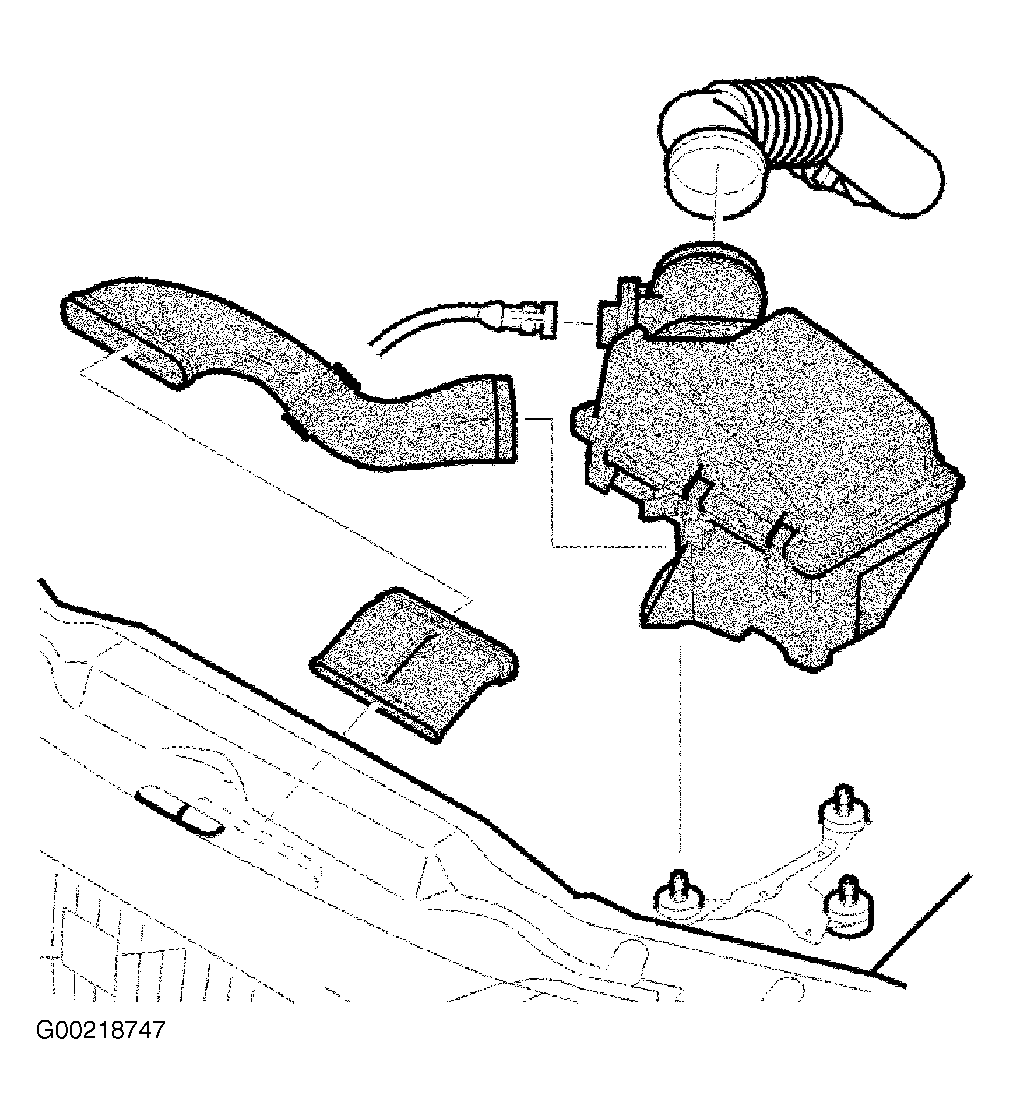

- Remove the air cleaner housing assembly with the intake pipe. See Fig 1.

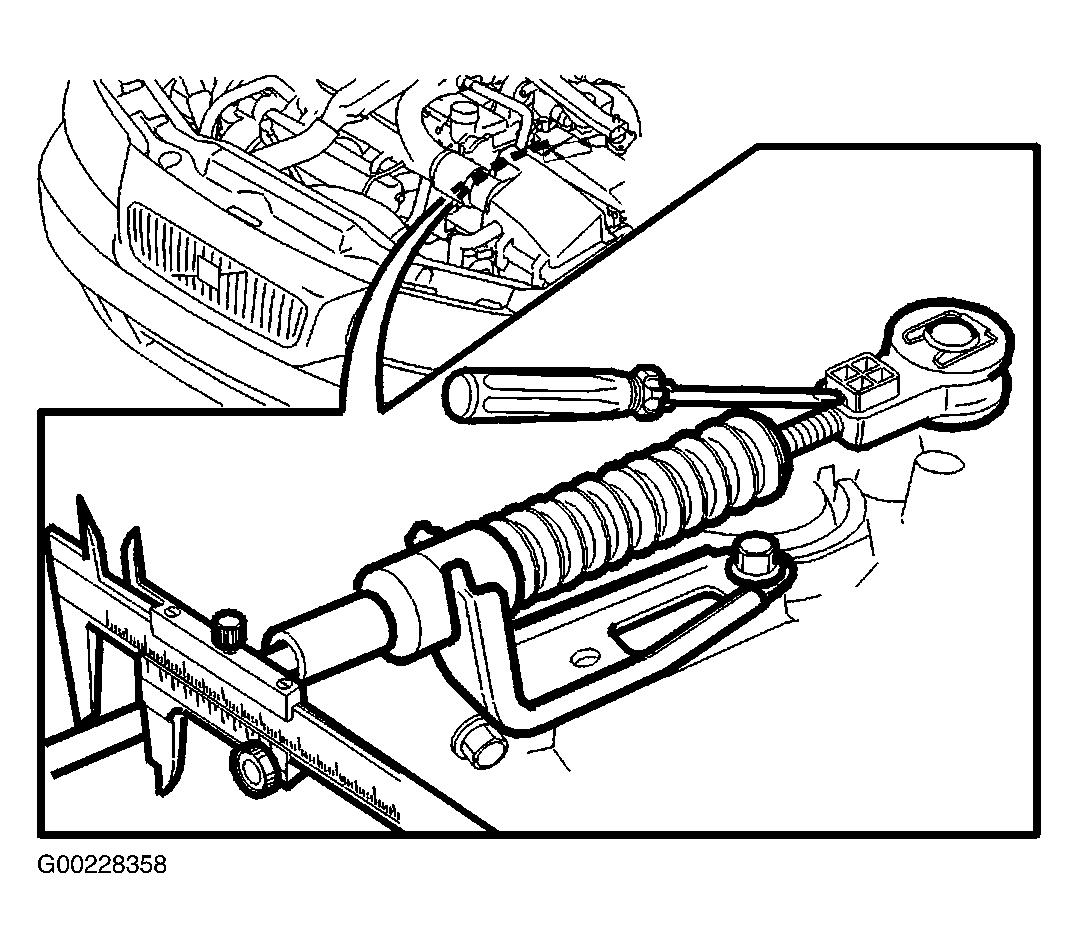

- Lift up the catch using a boltdriver. See Fig 2. The catch must be left in place. Move the gear selector to "P" position. Move the gear lever on the transaxle to "P" position (move the lever down towards the steering gear). Push the car until Park engages.

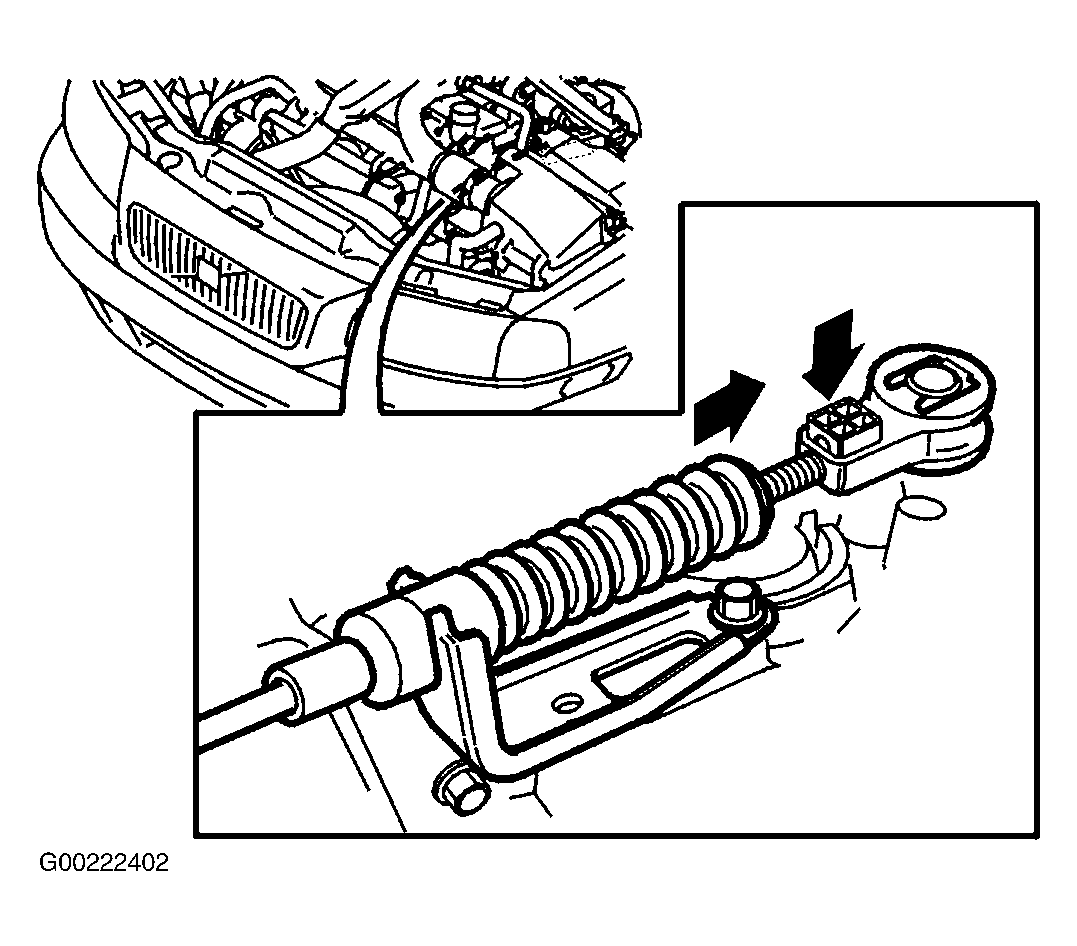

- Press the yellow catch into place. See Fig 3. The cable is then in the correct position.

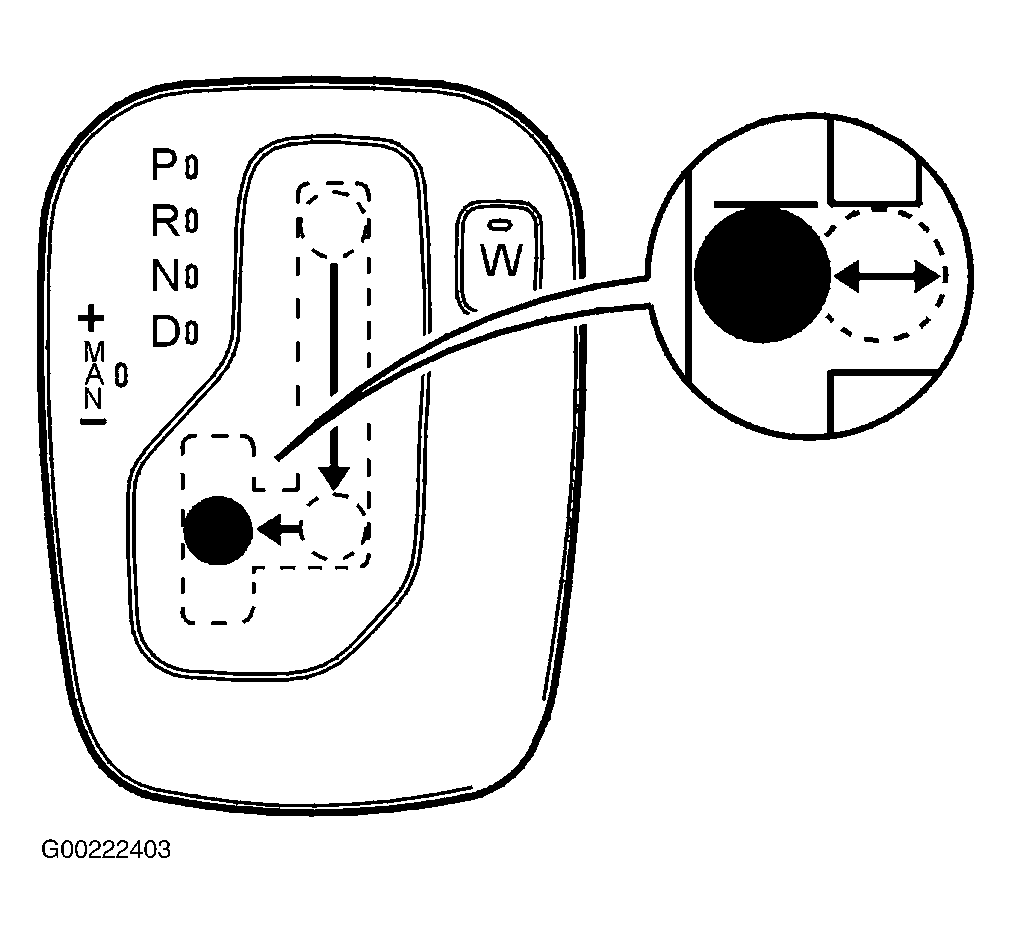

- Checking the position of the gear selector lever. Pull the gear selector lever downwards as far as possible. The force of the springs will make the lever jump to the left (the black shaded circle). See Fig 4.
- Move the gear selector lever to the right (large arrow). Check whether the gear selector lever moves further in the upper cut-out for the gear selector assembly (the circle) when the gear selector lever is moved sideways.

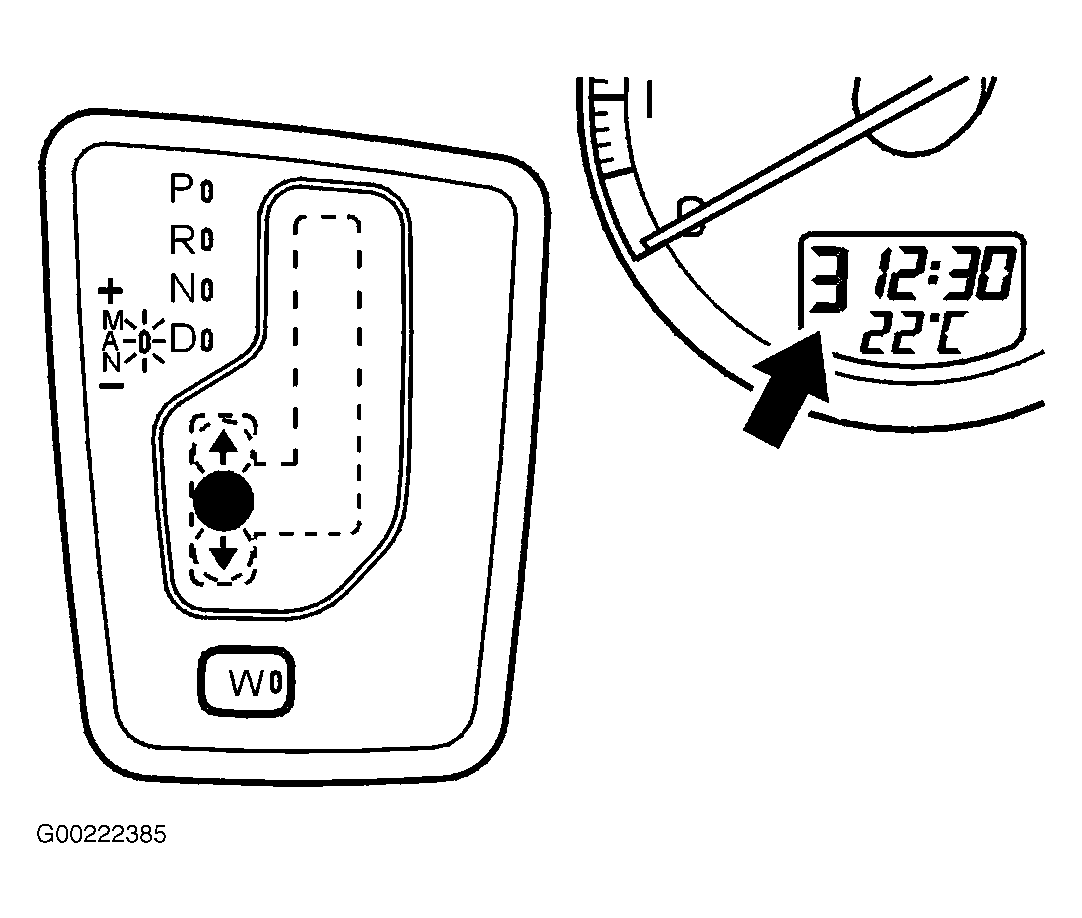

- Check the shifting in manual position. Turn on the ignition. Read display from the dashboard. See Fig 5. Shift upwards (+). The indicator must then display 1, 2 or 3. The indicator must return to 1 after downshifting (-).
- The adjustment was carried out correctly if this functions correctly. If the indicator displays "D", repeat the adjustment. Go to step 2.
- Install the air cleaner housing.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
