Checking fuse 11

• Check that fuse 11 in the integrated relay / fusebox in the engine compartment is intact.

  If the fuse is blown check the cable between fuse 11 and control module terminal #9. Check for a short-circuit to ground. See Short-circuit to ground, permanent faults . Then replace the fuse.

  Remedy as necessary.

  Other information:

  • To connect the breakout box, see Connecting the ABS breakout box .
  Fig 1: Breakout Box

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 2: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.

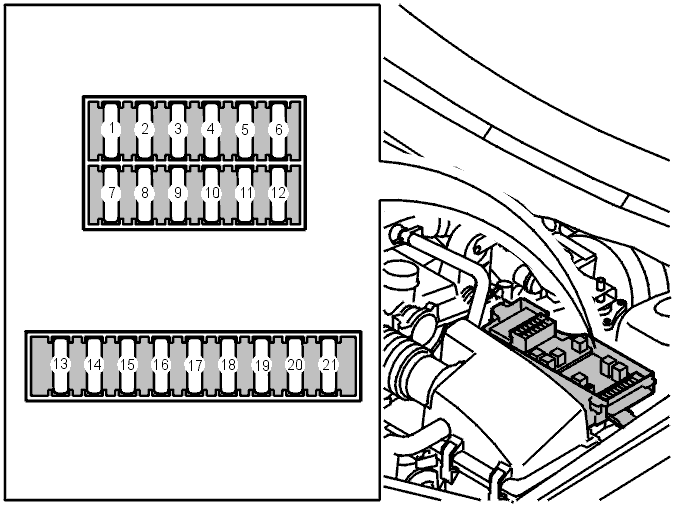

  Fig 3: Identifying Fuses

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Was the fuse OK?

• YES

  Refer to Checking the 30-supply to the control module

• NO

  Refer to Verification
