Intermittent fault
Check ground terminal 31/6 at the A-post. Check for contact resistance and oxidation. See Contact resistance and oxidation .
Check the communication cable between gear selector control module terminal #2 and transmission control module (TCM) terminal #B21 (#B31). Check for an open-circuit. See Open-circuit, intermittent faults .

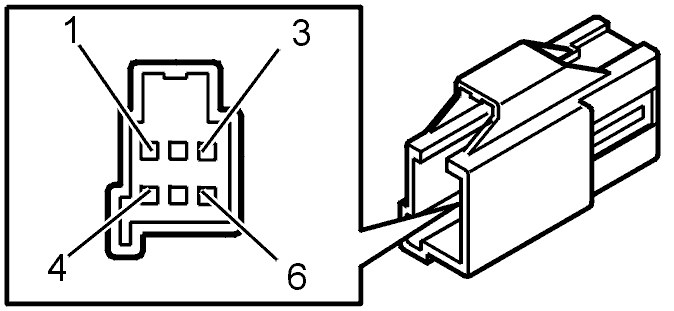

Check the 6-pin connector and connector 54/3RF (passenger compartment cable harness - engine compartment cable harness). Check for damage to the terminals and pins.
Check the cable between the gear selector module (GSM) terminal #6 and ground terminal 31/6. Check for an open-circuit. See Open-circuit, intermittent faults .
Remedy as necessary.
Other information:
- To connect the breakout box, see Connecting breakout box, Transmission control module (TCM)
- For information about signals, see Signal description. Transmission control module (TCM) .
