Installing The Throttle Unit

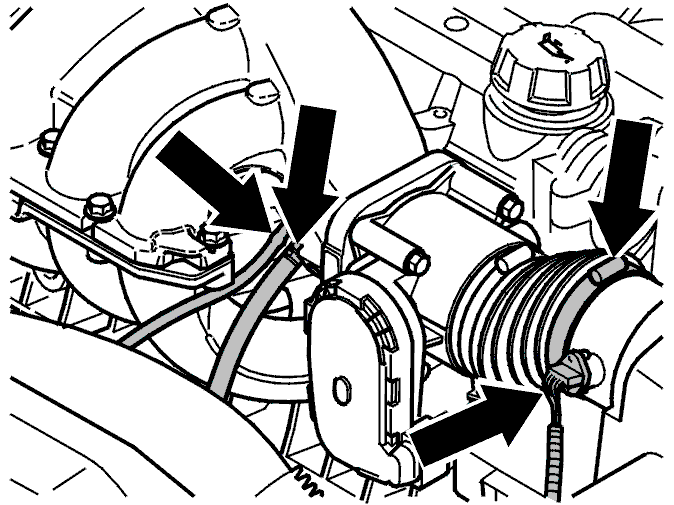

Fig 1: Identifying Throttle Unit, Connector, And Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the throttle unit. Use a new gasket  . Tighten to 10 Nm
• the vacuum hoses
• the connector for the throttle unit
• the cable in the clip on the throttle unit
• the hose between the throttle unit and the air cleaner (ACL) housing.

Remedy as necessary.
