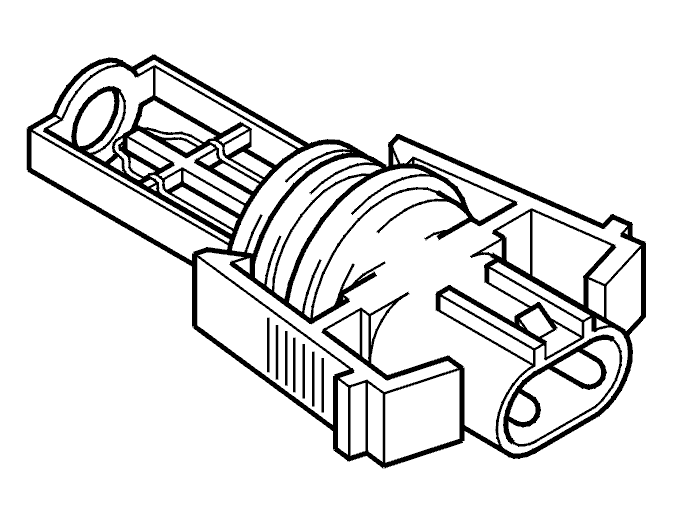

Intake air temperature sensor
Courtesy of VOLVO CARS OF NORTH AMERICA.
B52x4 Tx, B6284 Tx
NTC resistance.
| Temperature (°C) |
0 |
10 |
20 |
30 |
40 |
| R (Ω) |
15931 |
9672 |
6068 |
3923 |
2603 |
| V (Volts) |
4.30 |
3.94 |
3.50 |
3.00 |
2.50 |
B6xx4 Sx
NTC resistance.
| Temperature (°C) |
0 |
10 |
20 |
30 |
40 |
| R (Ω) |
5500 |
3600 |
2420 |
1660 |
1200 |
| V (Volts) |
3.40 |
2.90 |
2.40 |
1.94 |
1.57 |
