Engine Control Systems
>>
Component specifications (B5234T3; B5244T3; 2001)
>>
System relay (1)
System relay (1)

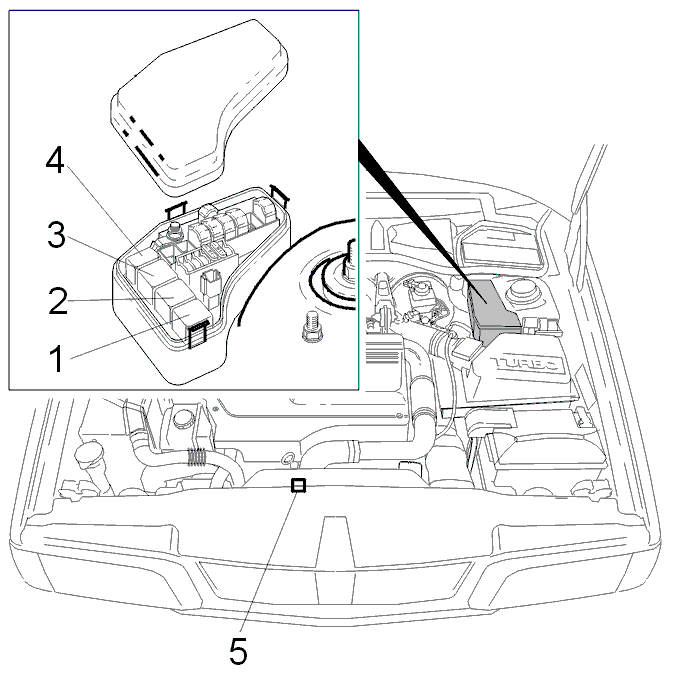

Fig 1: Identifying Fuse Box
Courtesy of VOLVO CARS OF NORTH AMERICA.
Mechanical relay. Resistance 80 Ω
Courtesy of VOLVO CARS OF NORTH AMERICA.
