Connecting the test box

Fig 1: Identifying Breakout Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off
• Remove interior fuse 24 (11C/24)
• Loosen the combined instrument as described in Driver information module (DIM), replacing
• Release control unit connector.

Connect adapter 9511463 (22-16-14-pin) to control unit connector and connect test box 9511428 and wire 9511499 to adapter.

Alternatively connect test box 9813190 to adapter.

Disconnect the test box in the reverse order.

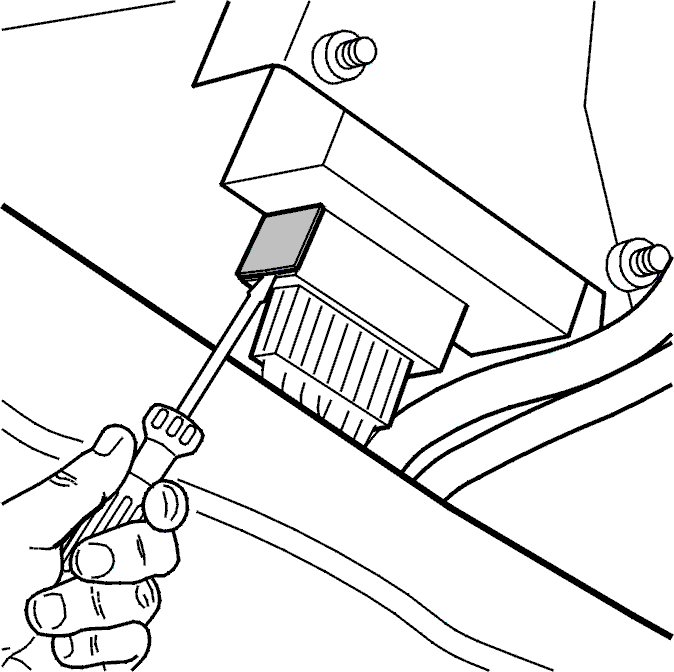

Fig 2: Identifying Control Module Connector & Locking Handle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Additional information:

• To remove the combined instrument see Driver information module (DIM), replacing
• For information about signals and other values, see Driver Information Module (DIM) signal description .
