Park/Neutral Position Sensor: Installation

  1. Install the PNP sensor. Tighten the sensor screws lightly. Install the rubber washer, lock washer and the nut on the gear shift linkage rod connection. Tighten the nut. Lock the nut with the lock washer. Adjust the PNP sensor. See PARK NEUTRAL POSITION SENSOR  under ADJUSTMENTS.

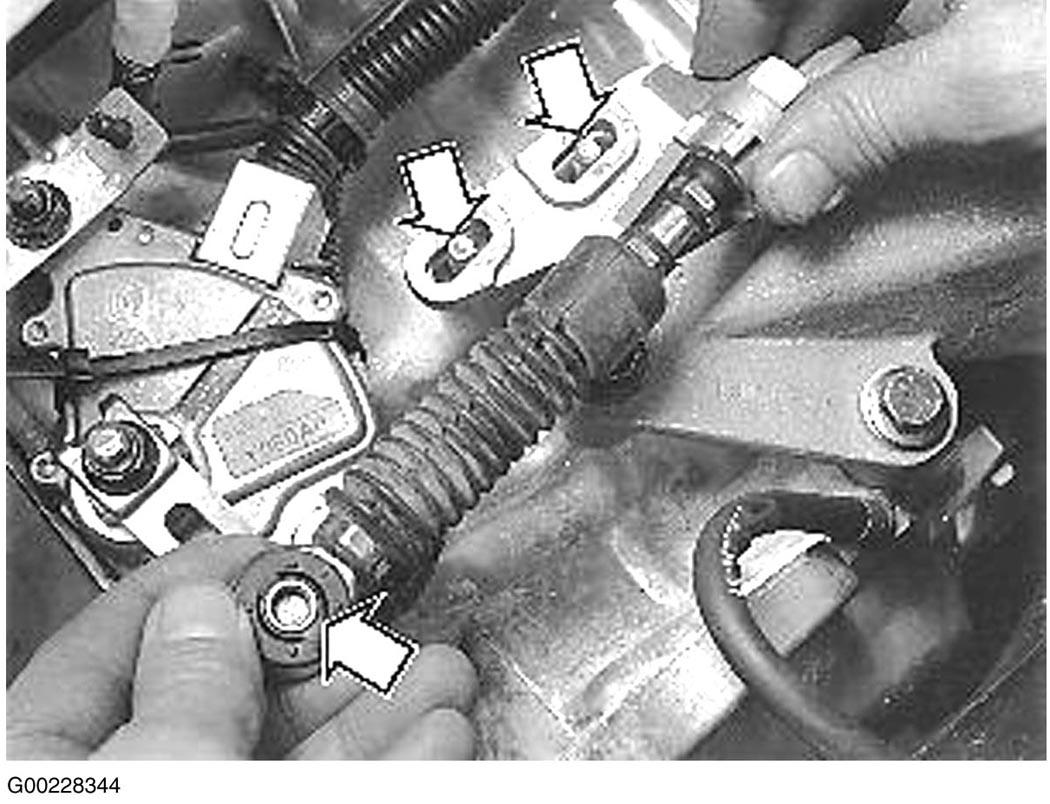

  2. Carefully reinstall the cable on the lever pin and studs. See Figure . Ensure that neither the gear selector or lever change position. Install the nuts. Tighten alternately to specification. See TORQUE SPECIFICATIONS  . Install the washer and the retaining clip on the lever. Install the cable in the clip on the connector bracket. Check adjustment. See GEARSHIFT CABLE  under ADJUSTMENTS.
  3. Install the air cleaner housing. Position the air cleaner housing and install the screws. Install the screws for the relay box. Install the preheating hose, the inlet hose and the assisted air control valve. Reconnect the vacuum hoses, connectors and wiring.
  4. Install the battery. Install the cable on the battery positive terminal and the cable on the battery negative terminal. Install the front engine cover (if applicable).
