Gearshift Cable: Installation

NOTE: Take care not to damage the cable or sleeve by bending it excessively. Take care not to damage the cable boot.
  1. Install the gearshift cable. Carefully insert the cable from the passenger compartment into the engine compartment. Install the cable sleeve in the gear selector assembly by pressing it into place. Install the cable on the gear selector with the pin. Install the frame over the rubber grommet in the cowl panel (2 nuts).

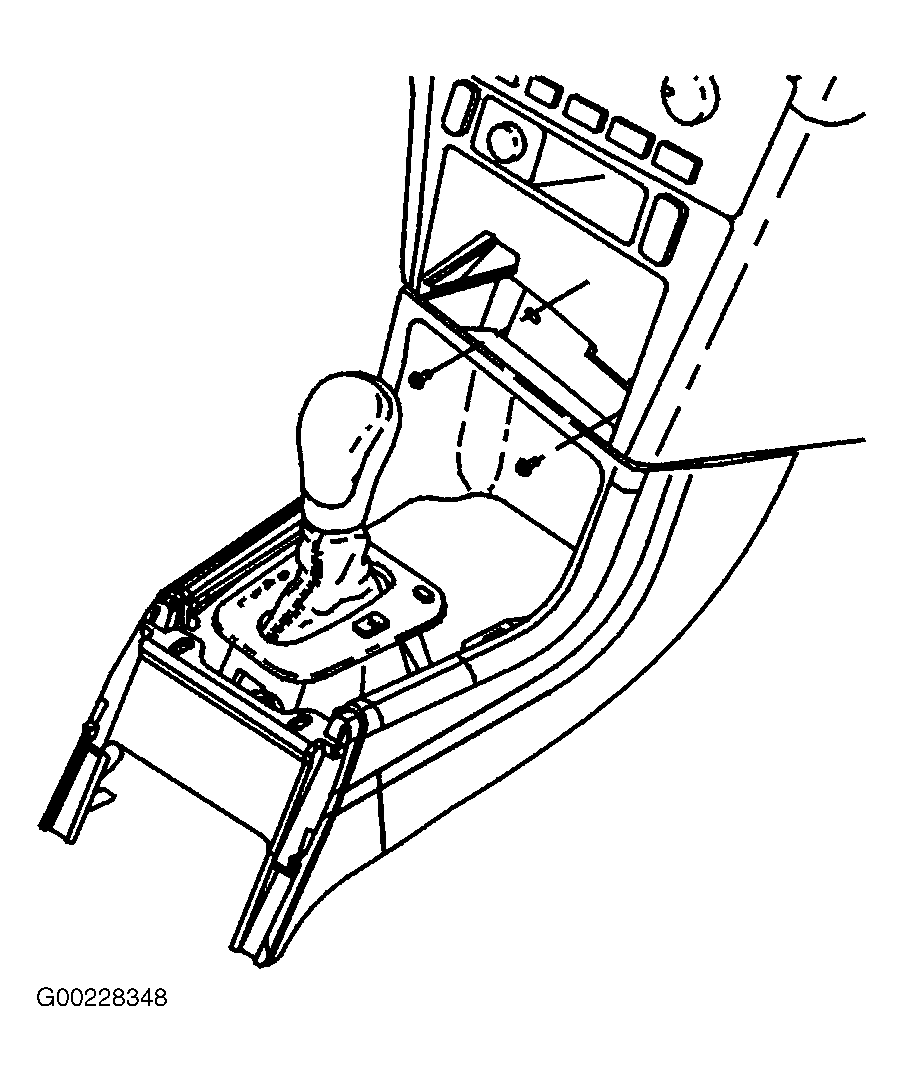

  2. Install front center console. Slide the front center console over the gear shift selector with a twisting movement. Position the front center console correctly. Slide the front center console over the guide under the dashboard and the side panels for the front center console. Install the two screws at the front edge. See Figure .
  3. Install the connector for the radio. Install the radio. Enter the anti-theft radio code.

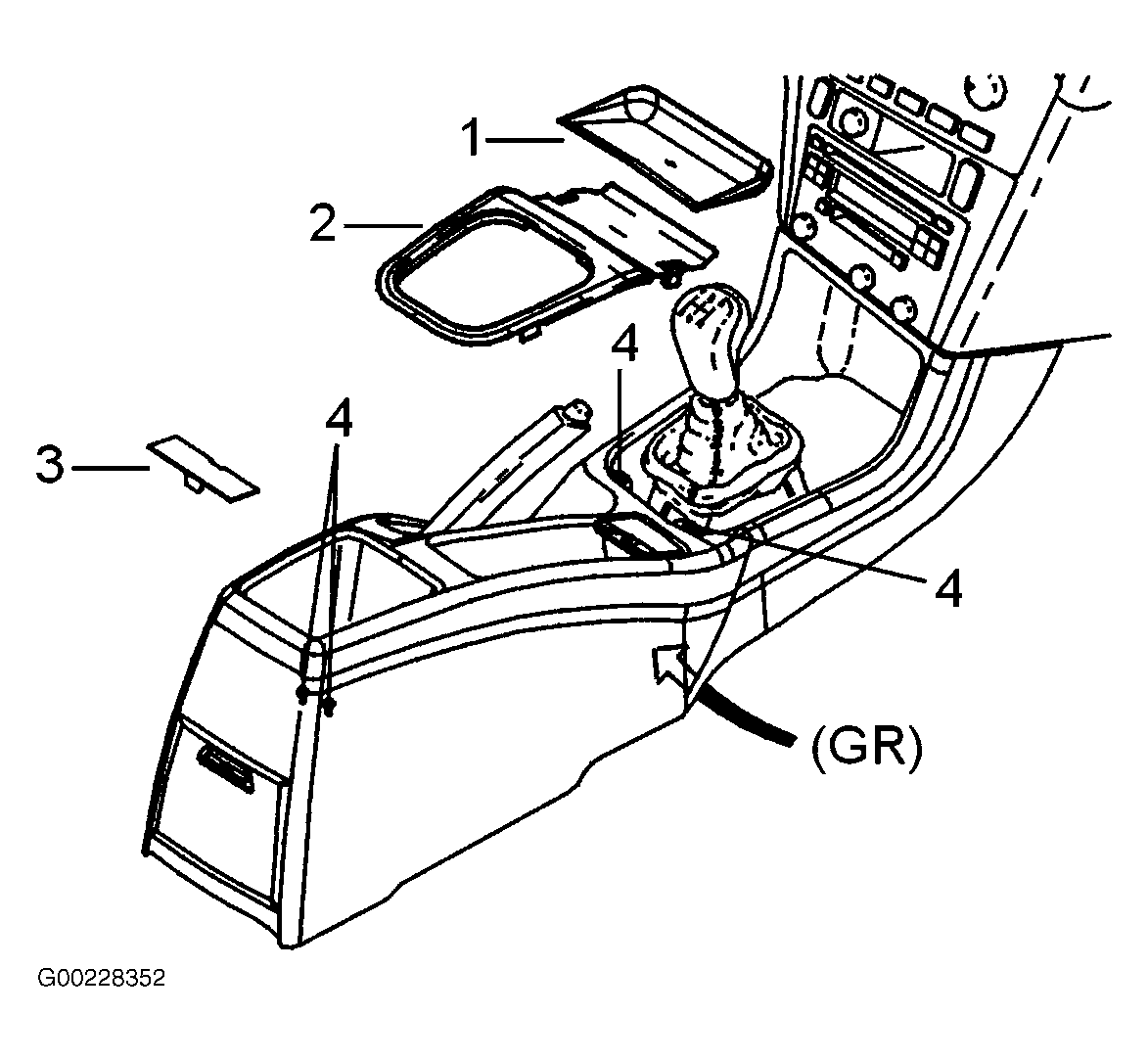

  4. Install the rear center console. Install the gray connector. Install the rear center console, the screw (4) and guard (3). Install the gear selector panel (2). See Figure . Check that the clip has engaged. Install the rubber underlay (1).
  5. Carefully reinstall the cable on the lever pin and studs. See Figure . Ensure that neither the gear selector or lever change position. Install the nuts. Tighten alternately to specification. See TORQUE SPECIFICATIONS  . Install the washer and the retaining clip on the lever. Install the cable in the clip on the connector bracket. Check adjustment. See GEARSHIFT CABLE  under ADJUSTMENTS.
  6. Install the air cleaner housing. Position the air cleaner housing and install the screws. Install the screws for the relay box. Install the preheating hose, the inlet hose and the assisted air control valve. Reconnect the vacuum hoses, connectors and wiring.
  7. Install the battery. Install the cable on the battery positive terminal and the cable on the battery negative terminal. Install the front engine cover (if applicable).
