Draining Engine Coolant

Remove the cap from the expansion tank. See Fig 1. Open the radiator drain cock. Install one hose on the nipple to lead off the coolant. Close the cock when the coolant is drained. When draining the coolant from the , slacken off the plug at the rear of the . Close the plug after draining.

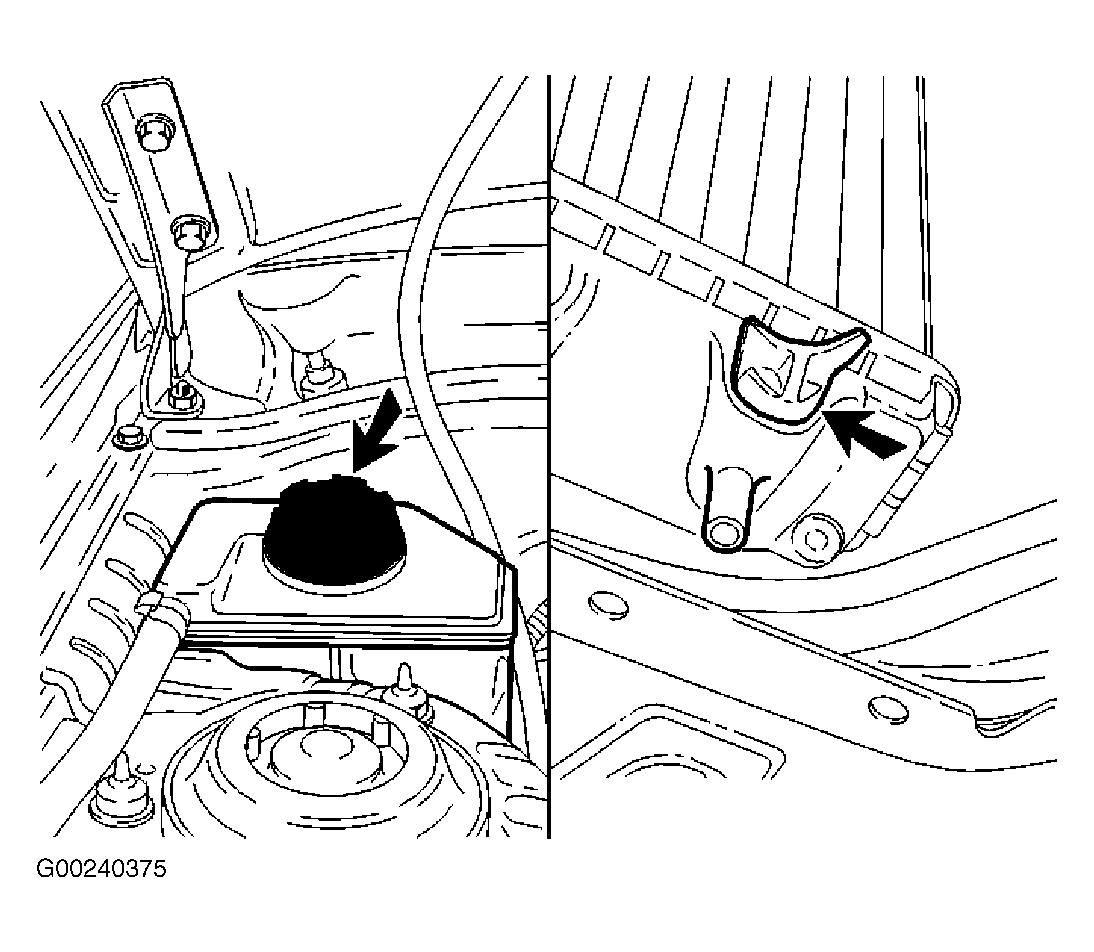

Fig 1: Locating Expansion Tank & Radiator Drain Cock

Courtesy of VOLVO CARS OF NORTH AMERICA.
