Signal too high. Permanent fault: Verification: Verification

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

HINT: After the repair it is necessary to check that the fault has been rectified.

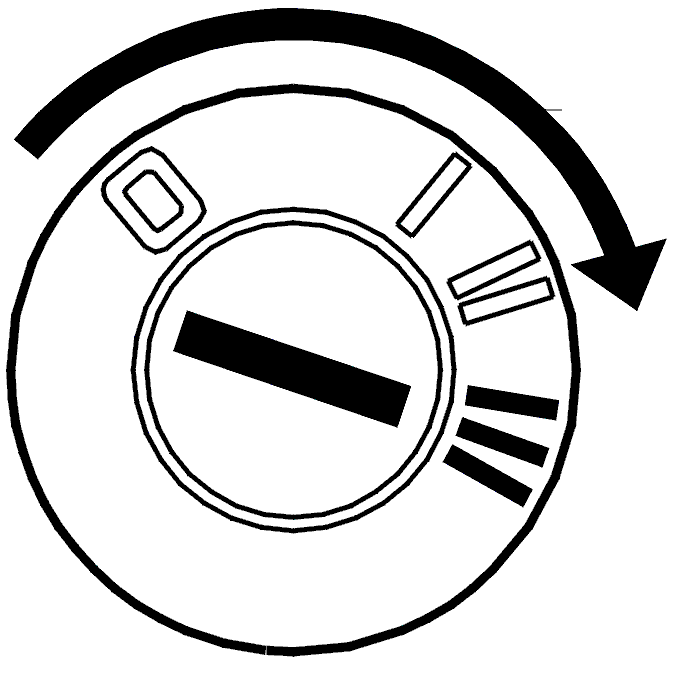

Fig 1: Identifying Engine START Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Connector(s) Reinstallation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Connect connectors, install components, etc.
Key in position III.
Check that X-voltage is OK.

Fig 3: Identifying VCT2000 Diagnostic Tool Symbol In VIDA
Courtesy of VOLVO CARS OF NORTH AMERICA.

Is voltage on the wire low?

YES
VERIFIED: Troubleshooting has been completed.
NO
Refer to Information
