Checking the component and cable

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.

  Check the cable between control module terminal #1B and ignition switch terminal #S (#3). Check for an open-circuit. Check for a short-circuit to ground.

  Remedy as necessary.

  Other information:

  • The voltage must be the same as battery voltage if the key is in position 0, I, II or III
  • To access or replace the central electronic module (CEM) connector, see Central electronic module (CEM), replacing
  • To connect the breakout box to the control module, see Connecting the breakout box
  • For further information about signals and other values, see Signal specification
  • See Checking wiring and terminals. Permanent fault .
  Fig 2: Identifying Breakout Box

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 3: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.

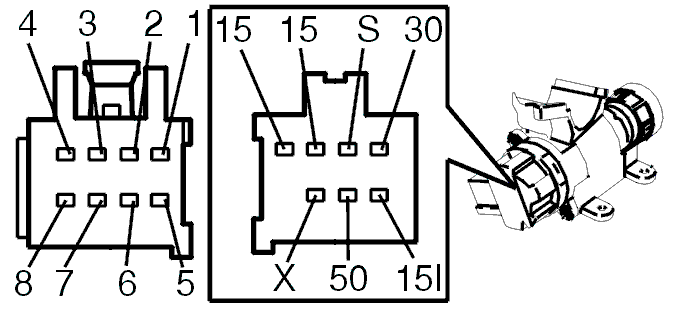

  Fig 4: Identifying Ignition Switch Terminals

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Was a fault detected?

• YES

  Refer to Verification

• NO

  Refer to Replacing ignition switch connector
