The Switch For Driving Mode (Not R Line)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

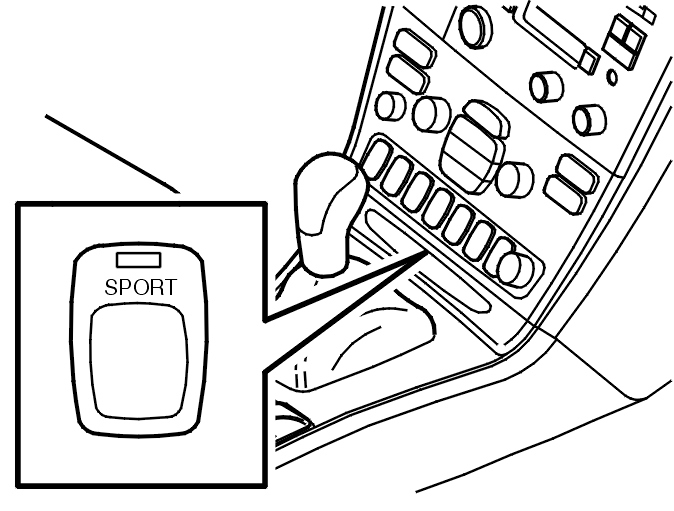

Fig 1: Identifying Driving Mode Switch (Not R Line)

Courtesy of VOLVO CARS OF NORTH AMERICA.

The Four-C switch is beside the other switched on the lower section of the climate control module (CCM).

There are two different driving modes which can be selected:

COMFORT
SPORT.

The "COMFORT" driving mode is active when the switched is not activated. The "SPORT" mode is activated when the switch is pressed. This is confirmed by a green LED in the switch.

In the "COMFORT" driving mode, ride comfort is prioritized. In "SPORT" mode driving pleasure is prioritized.

The switch on the climate control module (CCM) is connected to the central electronic module (CEM). The central electronic module (CEM) is in turn connected to the suspension module (SUM) via the Controller area network (CAN).

There are diagnostics for the climate control module (CCM).
