Installing The Exhaust System

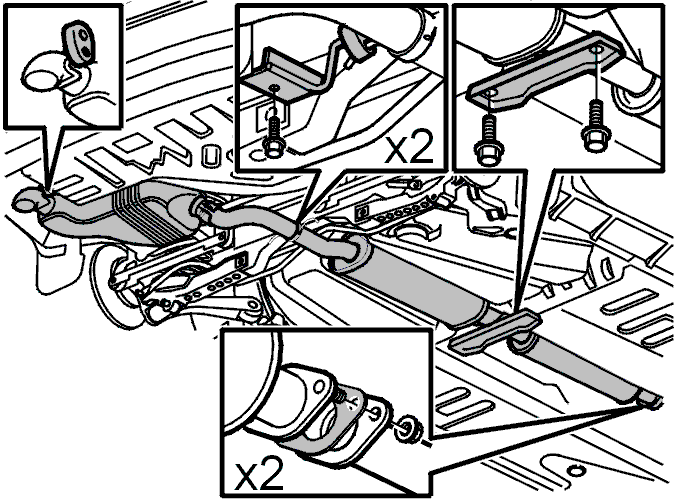

Fig 1: Exhaust System, Brackets And Fasteners

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the front section of the exhaust system. Use a new flange gasket. Do not tighten
• the rear section with the pipe clamp
• the mountings for the exhaust system.

Adjust the position of the exhaust system and tighten:

• the screws and the nuts for the flange gasket
• the pipe clamp.
