Aligning front frame member

Left-hand side

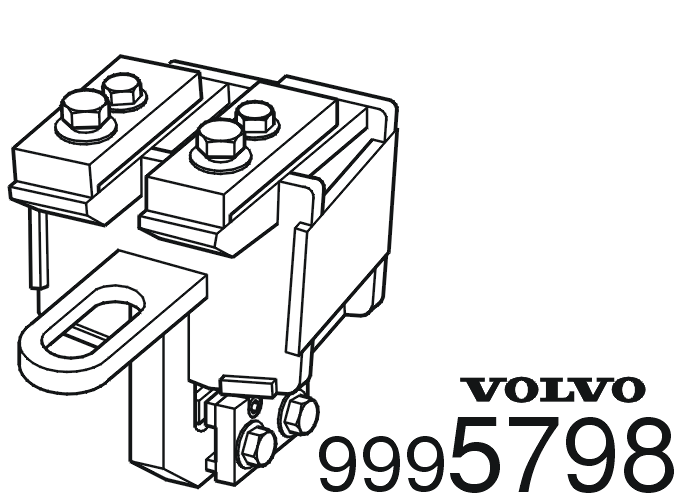

Fig 1: Identifying Special Tool 999 5798

Courtesy of VOLVO CARS OF NORTH AMERICA.

Volvo have developed two traction mountings to facilitate aligning in the event of damage to the front frame member.

Left-hand side: 999 5798

Right-hand side: 999 5797

The tools are designed so that they can be forced into the end of a very badly deformed member which ensures a good mounting without the risk of deformation.

Right-hand side

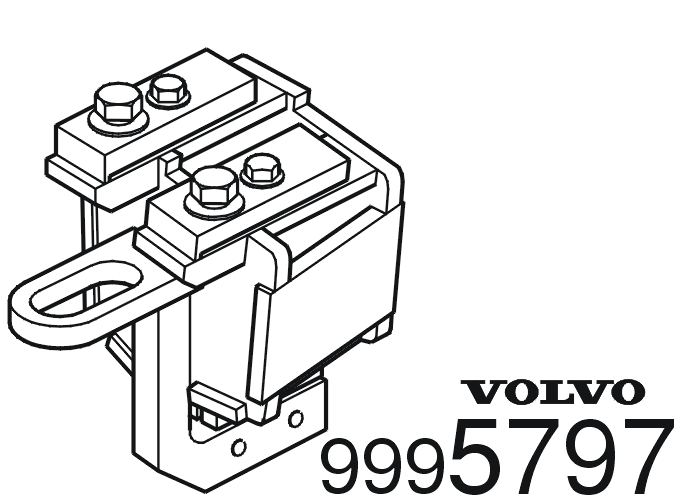

Fig 2: Identifying Special Tool 999 5797

Courtesy of VOLVO CARS OF NORTH AMERICA.
