Installing fuse and programming software

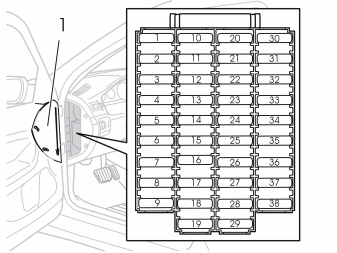

Fig 1: Identifying Cover On Left-Hand Side Of Dashboard And Fuse Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover (1) on the left-hand side of dashboard
Install a 5 A fuse:
in terminal 29 for cars up to and including model year -00.

in terminal 38 for cars from model year 01-04 inclusive.

Cars from model year 05 have this fuse fitted.
Program the software. See the service information in VADIS/VIDA. Requires Volvo scan tool.
Check the function of the alarm.
