Installing, The Trip Computer Control

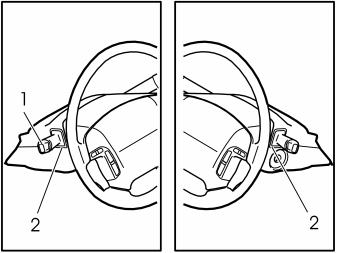

Fig 1: Identifying New Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new lever (1) in position
Tighten the lever using the two screws
Push the upper steering column cover down over the two levers. Ensure that the two rubber boots (2) align with the cut out in the steering column cover.
