Boost pressure sensor

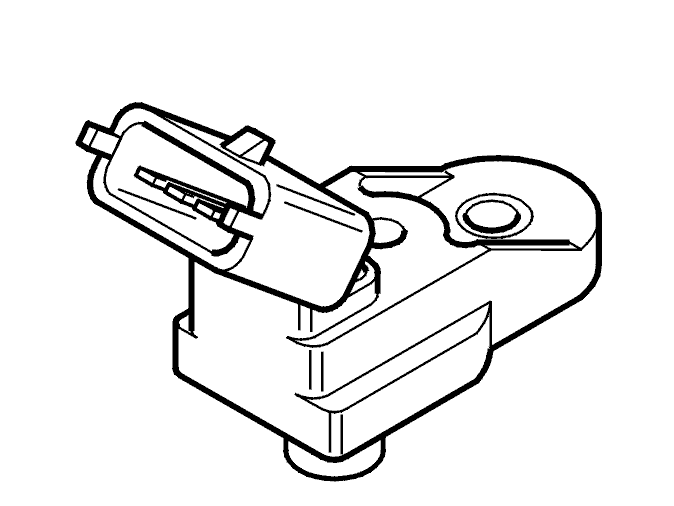

Fig 1: Boost Pressure Sensor
GLL102997Courtesy of VOLVO CARS OF NORTH AMERICA.

Piezo resistive lineal pressure sensor. Measurement range 20.0-250 kPa.

P (kPa) 90.0 101.3 150.0 200.0
V /(Volts) 1.69 1.90 2.80 3.71
