Upholstery, side cushion, replacing

Upholstery, side cushion, replacing

Carry out operation Side cushion .

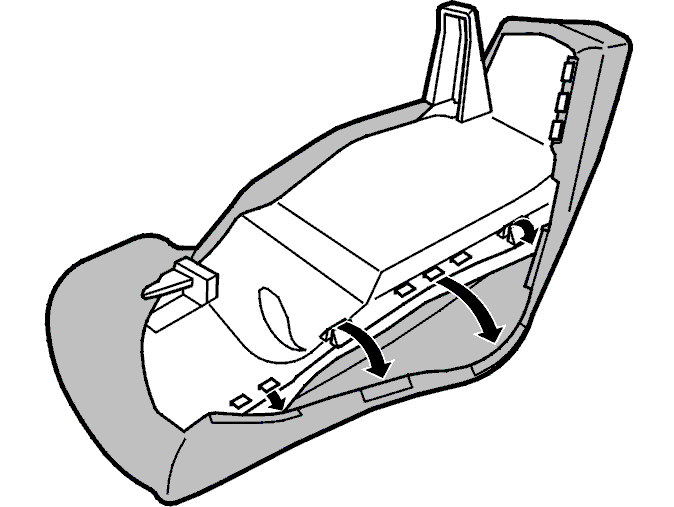

Fig 1: Hooking Upholstery Onto Frame
GLL105039Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the upholstery from the frame.

Installation

Install:

Hook the upholstery onto the frame.
