Circuit test: Notes

The fault is caused by an open circuit in one of the relay circuits or in the lock unit. To find out which circuit contains the fault:

Disconnect the lock unit connector.

Check the contacts for Contact resistance and oxidation .

Check resistance between 2 and 4 on cable connector.

Additional information

• To access/replace the lock unit, see Replacing the switch for the lock unit/cargo compartment lighting .

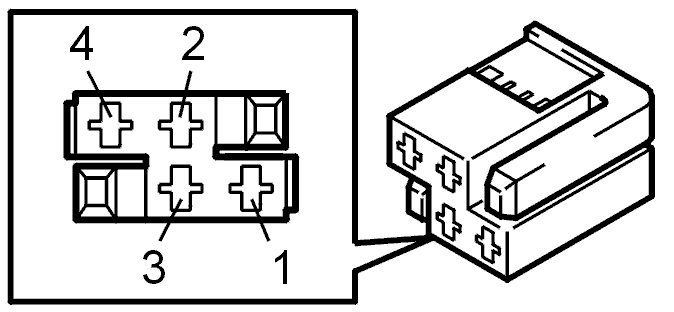

Fig 1: Identifying Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

The ohmmeter should display 0 ohm.

• OK

  Refer to Checking the ground wire

• NOT OK

  Refer to Circuit test, continued
