Park Neutral Position Sensor
- Ensure ignition is off. Remove the following engine compartment components:
- Air cleaner housing and the intake pipe.
- Battery.
- Battery shelf.

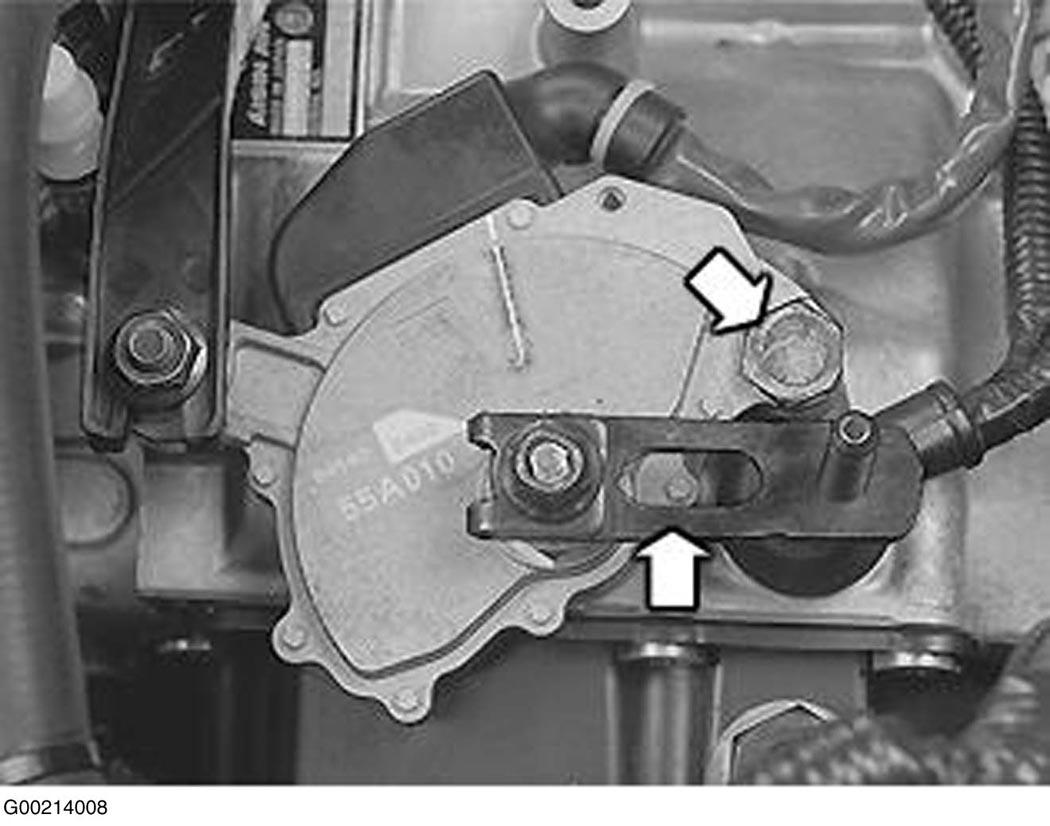

- Remove the transaxle cable. Remove the screws from the bracket for the gearshift cable. See Fig 1
. Remove the cable from the lever. Move the cable to one side.
NOTE: The tool must be positioned down to the "Z" edge, below the threads. Press the tool down towards the flat surfaces below the thread on the shaft.

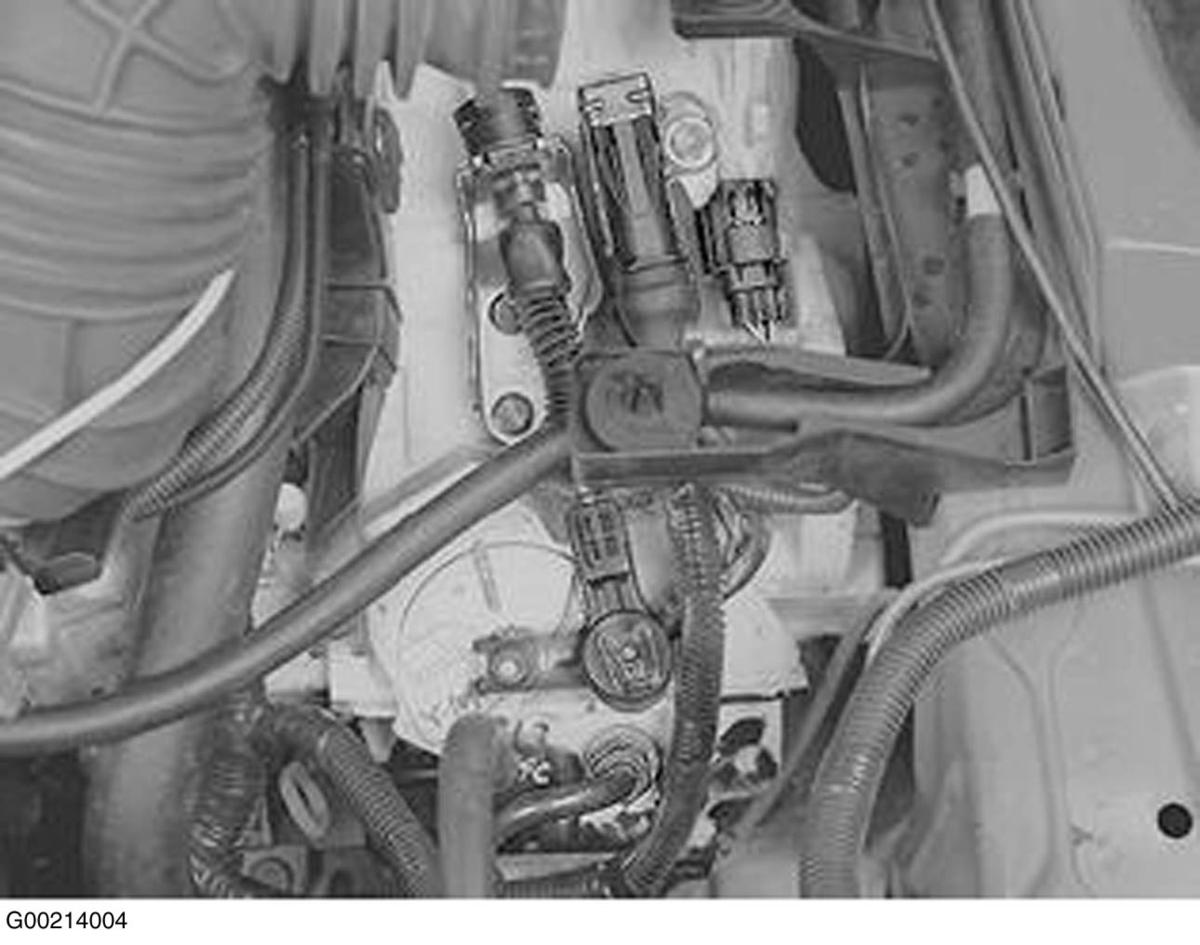

- Check the setting. Remove the lever. Install adjustment tool (999 5475) on the gearshift linkage rod. See Fig 2 . Check that the shaft is in the "N" position. The groove on the tool must align with the marking on the Park/Neutral Position (PNP) sensor. If adjustment is required, go to next step.
- Remove the nut for the cable duct. Lift the cable duct away from the screw. Slacken off the screws for the PNP sensor. Rotate the PNP sensor so that the mark on the switch aligns with the groove on the tool. Tighten the screws for the sensor. Tighten to specification. See TORQUE SPECIFICATIONS . Remove the adjustment tool.
- Install the cable duct. Install the cable duct on the screw. Install the lever on the control shaft. See Fig 3 .
- Install the gear selector cable. Install the cable on the lever. Install the screws for the bracket.
- Install the battery shelf. Install the air cleaner housing and the intake manifold. Install the battery.
- Check for and erase any Diagnostic Trouble Codes (DTC). See appropriate DIAGNOSIS article.
