Checking Fluid Levels

Fluid should be up to bottom of fill hole. Use socket to remove fill plug (A). See Fig 1 . Clean strainer and magnet with solvent. Replace filter on fill plug. Install and tighten to specification. See TORQUE SPECIFICATIONS  .

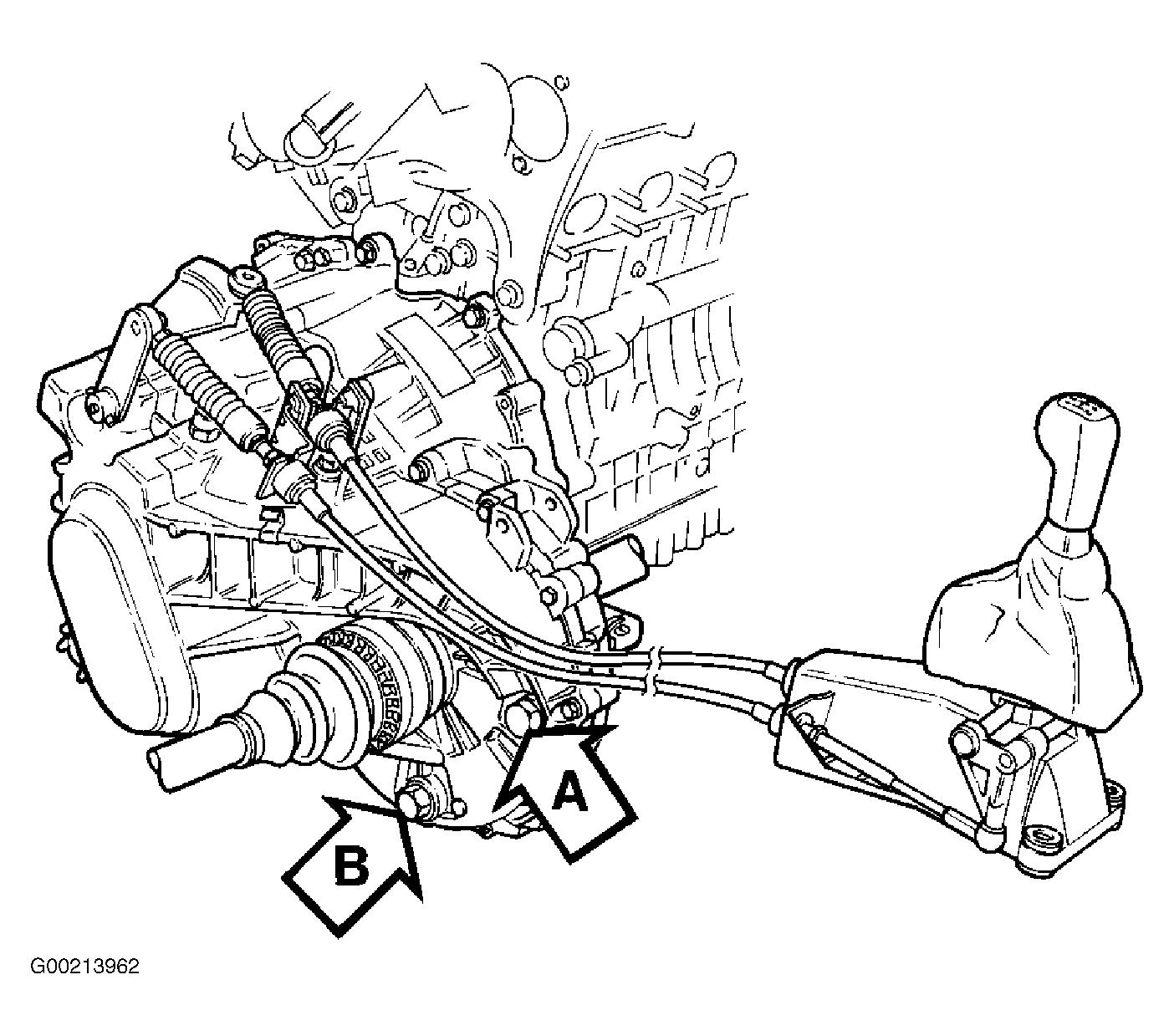

Fig 1: Locating Transaxle Drain & Fill Plugs

Courtesy of VOLVO CARS OF NORTH AMERICA.
