Component Locations

COMPONENT LOCATIONS

Component Location
A/C Pressure Sensor Left Front Of Engine Compartment, Top Of A/C Accumulator
Cooling Fan Relay (2000, Low Speed) Engine Compartment Fuse/Relay Box (Relay No. 2/11). See Fig 1 .
Cooling Fan Relay (2000, High Speed) Engine Compartment Fuse/Relay Box (Relay No. 2/12). See Fig 1 .
Cooling Fan Relay (2001-04, Low Speed) Engine Compartment Fuse/Relay Box (Relay No. 1). See Fig 2 .
Cooling Fan Relay (2001-04, High Speed) Engine Compartment Fuse/Relay Box (Relay No. 4). See Fig 2 .
Condenser Fan Relay (2000) Passenger Compartment Relay Box (Relay No. 2/41). See Fig 1 .
Condenser Fan Relay (2001-04) Engine Compartment Fuse/Relay Box (Relay No. 3). See Fig 2 .
Cooling Fan Circuit Ground Point Left Front Of Engine Compartment. See Fig 3 .
Condenser Fan Circuit Ground Point Right Front Of Engine Compartment. See Fig 4 .
ECM Behind Center Console. See Fig 5 .
Engine Coolant Temperature (ECT) Sensor Front Of Engine, Near Thermostat Housing

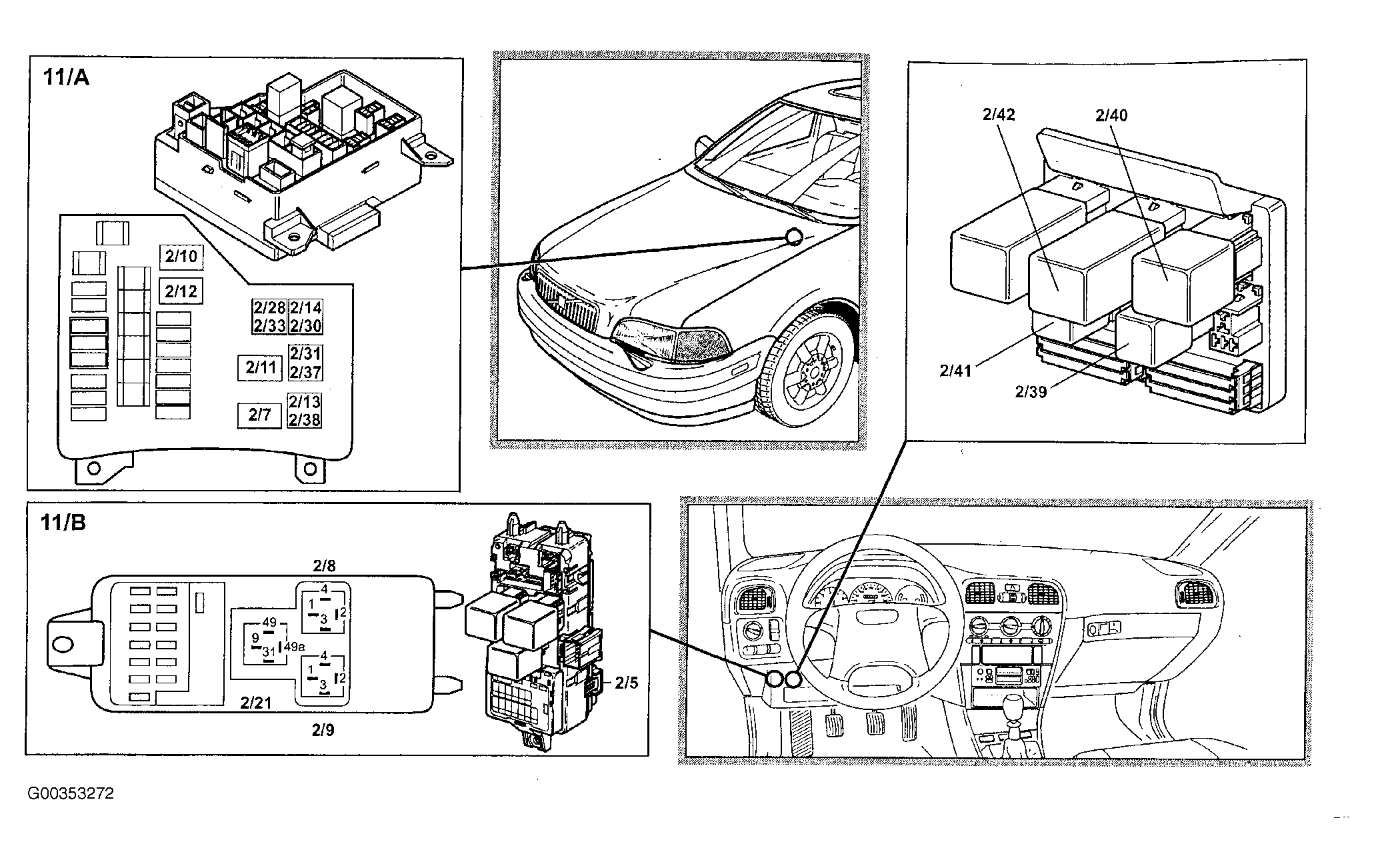

Fig 1: Locating Engine Compartment Fuse/Relay Box (2000)
G00353272Courtesy of VOLVO CARS OF NORTH AMERICA.

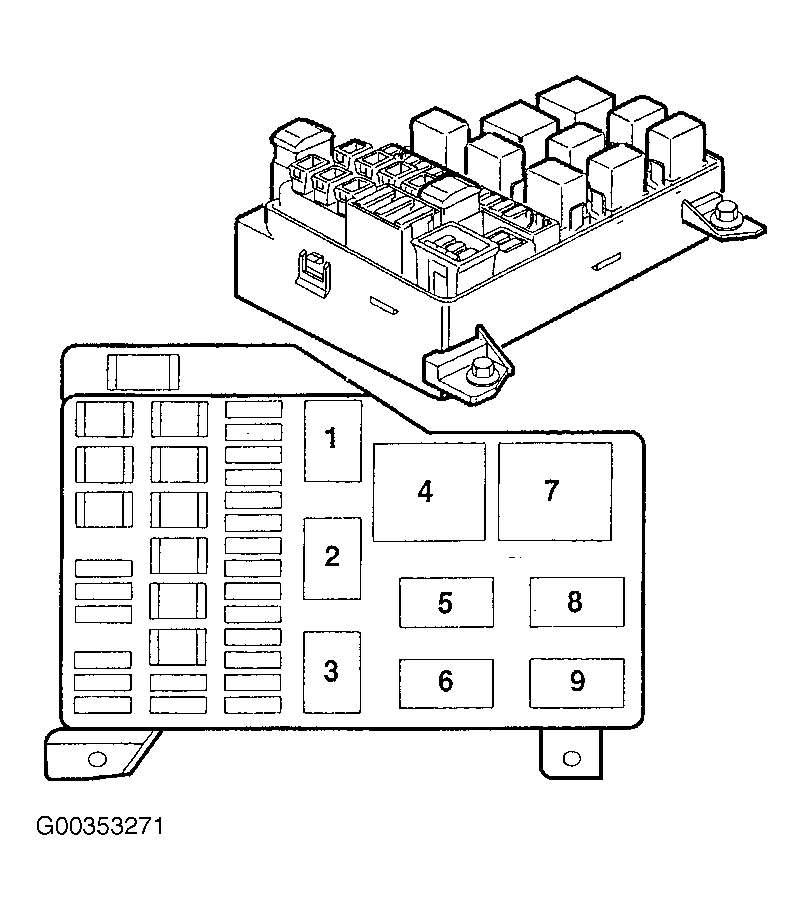

Fig 2: Locating Engine Compartment Fuse/Relay Box (2001-04)
G00353271Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 3: Locating Cooling Fan Circuit Ground Point
G00353273Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 4: Locating Condenser Fan Circuit Ground Point
G00353274Courtesy of VOLVO CARS OF NORTH AMERICA.

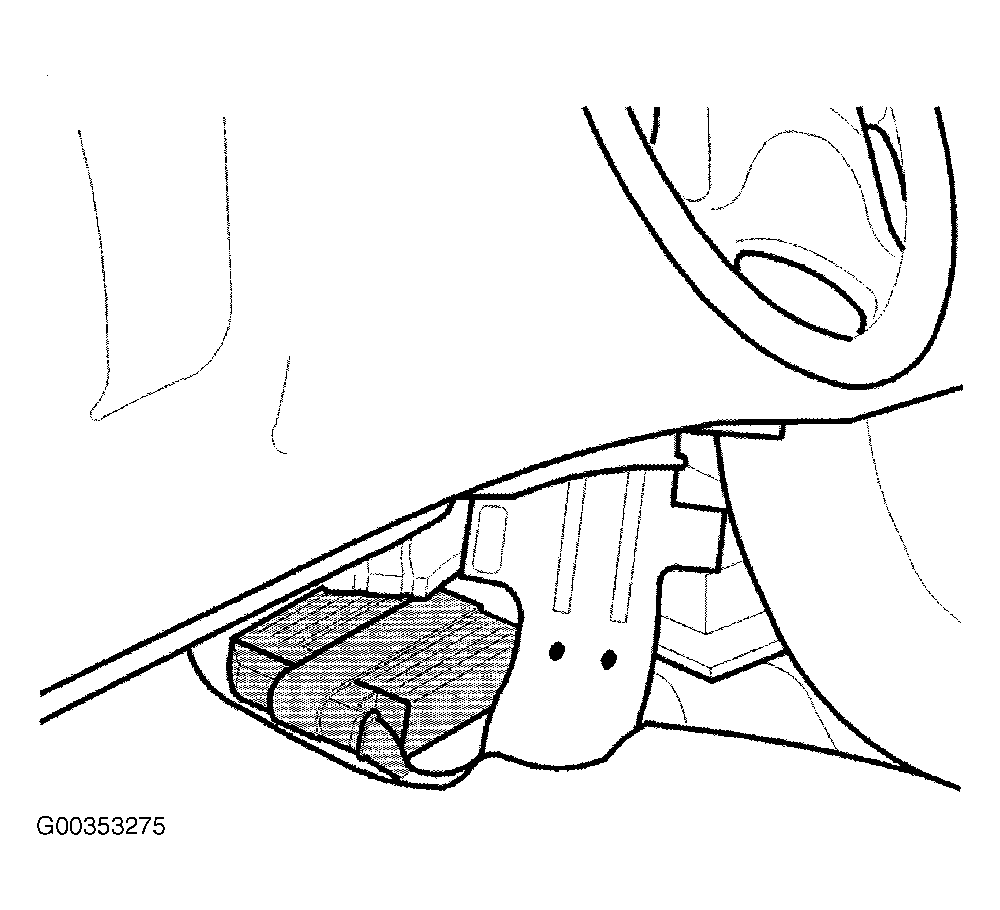

Fig 5: Locating ECM
G00353275Courtesy of VOLVO CARS OF NORTH AMERICA.

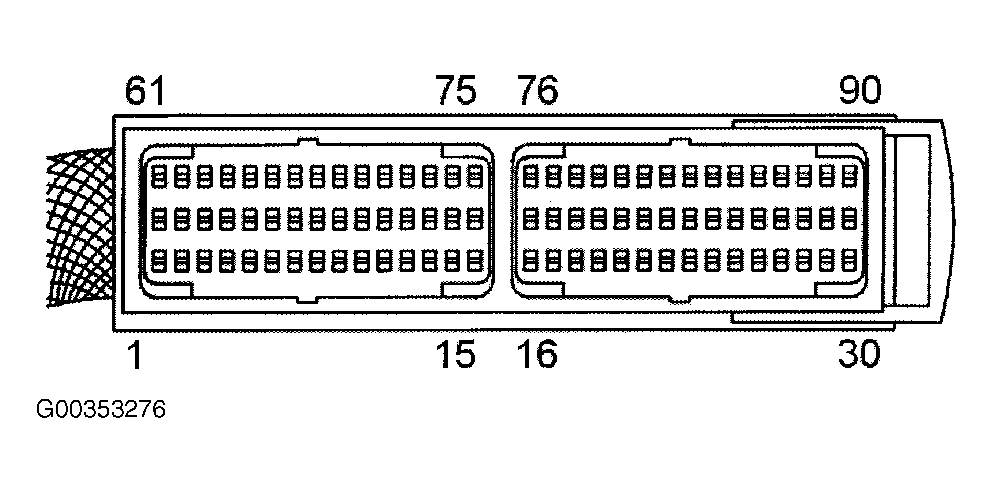

Fig 6: Identifying ECM Terminals
G00353276Courtesy of VOLVO CARS OF NORTH AMERICA.
