Close socket housing

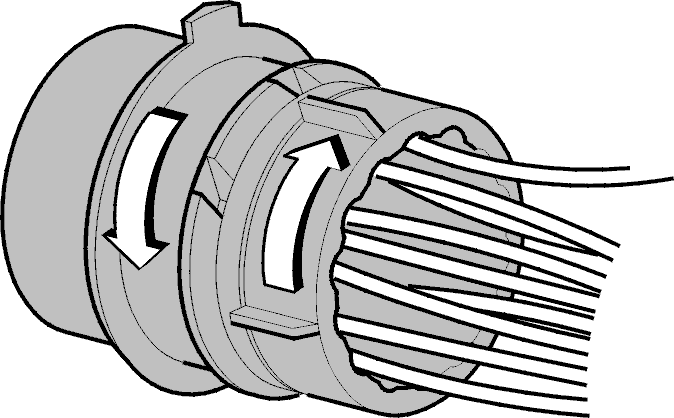

Fig 1: Closing Socket Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Secondary locking

• Activate secondary locking by turning both the ring sections as shown in the illustration. A "click" indicates that the secondary locking has engaged.

Check

• Carefully pull on the cables to check the terminal is firmly attached.
