Removing Steering Column Assembly

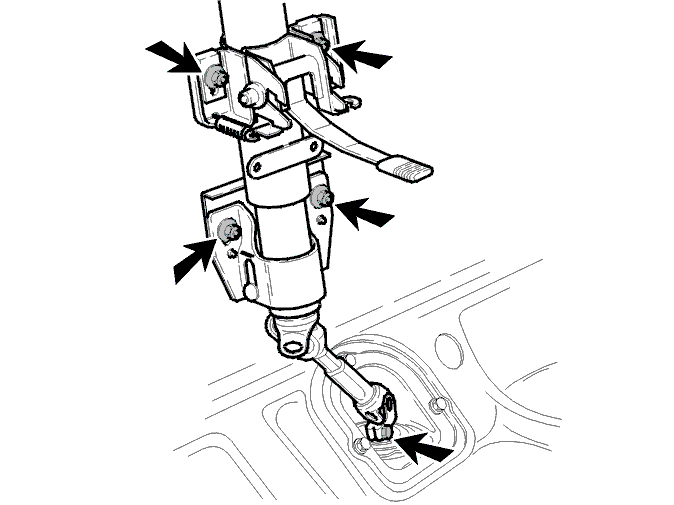

Fig 1: Identifying Steering Column Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screw from the pinion shaft and steering shaft joint
• the four mounting screws from the steering column
• remove the steering column from the pinion shaft.
