Installing Steering Column, Components

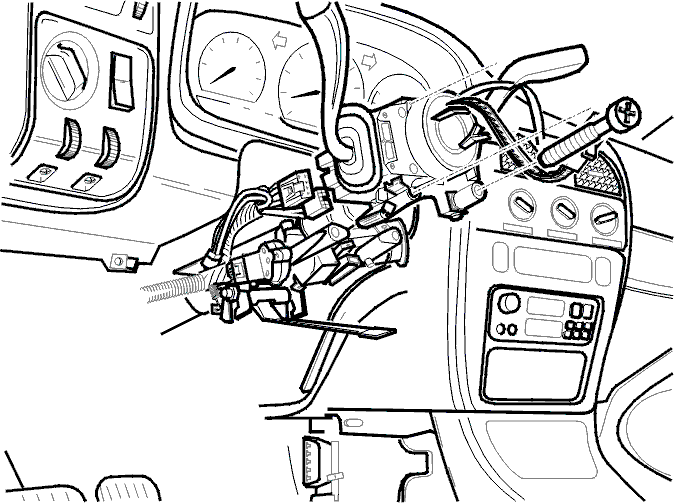

Fig 1: Identifying Steering Column Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the connector for the switch for the turn signal lamps
• the mounting and the switch. Tighten to 6 Nm
• install the cable harness. Connect the connectors
• the upper steering column cover. Ensure that the lugs are correctly positioned
• the lower steering column cover. Tighten to 6 Nm.
