Remove central electronic module (CEM)
- Remove four connectors from the central electronic module (CEM) (LHD cars: locking connector is on the upper side).

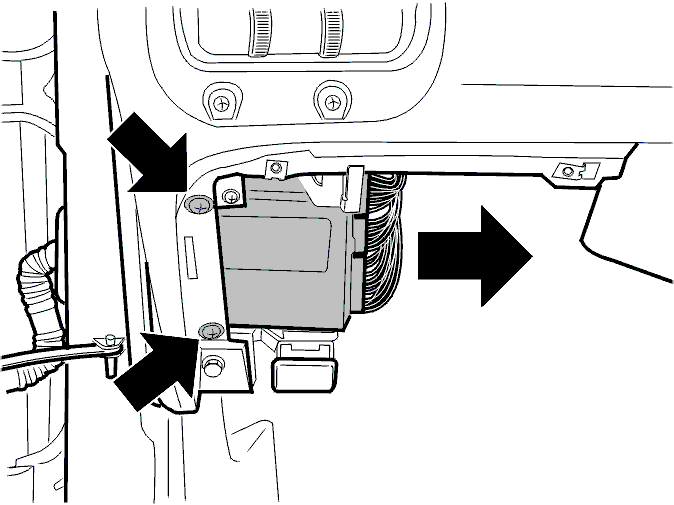

- Remove two screws and remove the central electronic module (CEM).NOTE:
Always check the CEM and connectors before bending or pins and sockets may be damaged.
This may have caused the fault.
