Diagnostic trouble code information

SWM-001C

Condition

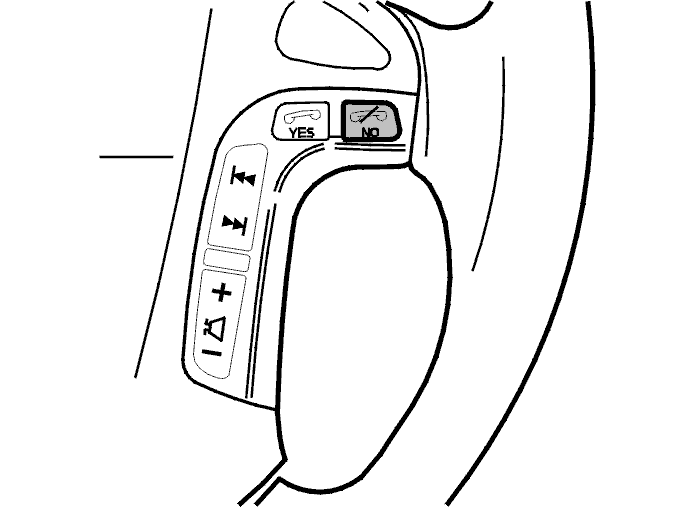

Fig 1: Identifying Telephone NO Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

If SWM microprocessor/control unit registers that NO switch is activated for more than 5 minutes, diagnostic trouble code SWM-001C is displayed.

Substitute Value

Nothing.

Possible Source

• NO switch is activated for more than 5 minutes.

Fault symptom[s]

• Telephone not working.
